Benelec UHF Low Profile Rail Antenna 400-470MHz, N Socket
AUD Includes GST

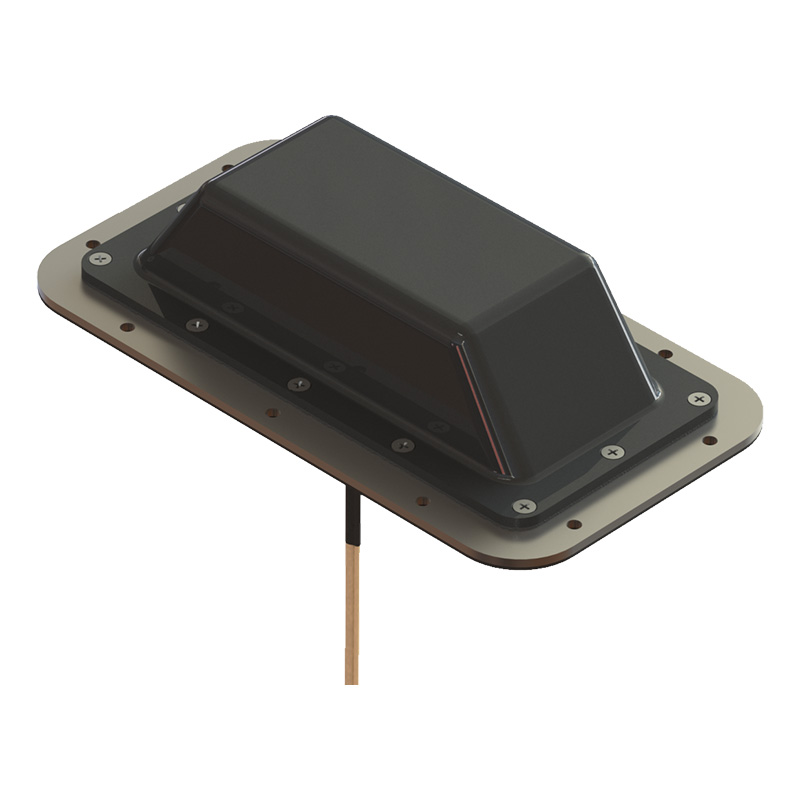

The 02628R is a ground-dependent, low-profile UHF broadband antenna with unity gain, designed for operation in the 400–470 MHz band. It features a heavy-duty stainless-steel plate radiator, providing a rugged and durable construction with excellent DC grounding. The antenna includes a radome and a fixed cable tail with a matching section. It is designed for use on a minimum 1 m² ground plane.
[shipping_message]
We’re currently enabling online payment and shipping.
Shipping available:
- Description
- Specifications
Description
Benelec UHF Low Profile Rail Antenna
400-470MHz | N Socket
FEATURES
- Heavy-duty stainless-steel construction
- DC grounded
- Omni-directional
- Full band <2.0:1 (on min 1 sqm ground plane)
- Low profile (70mm height)
- N type socket connector
- Heavy-duty radome
- GPS module (optional)
- Ground dependent antenna (1 sqm ground required)
- Waterproof gasket 1.6mm thick
- Factory tuned; requires no further tuning
- Designed and manufactured in Australia
APPLICATION
All vehicular/rail low profile applications
WARRANTY
3-Year Warranty
(Refer to Benelec Terms and Conditions)
| Frequency | 400 – 470 MHz |
| Gain | Utility |
| VSWR | <2.0:1 400 – 470 MHz |
| Impedance | 50 Ω nominal |
| Polarisation | Vertical |
| Radiation | Omni-directional |
| Temperature Rating | > 150 °C |
| Termination | N socket connector |
| Dimensions | L 296 x W 161 x H 68 mm |
| Net Weight | 2.3 kg |
