Benelec UHF 6-9dBd Base 4 Bay Offset Array Antenna 360-520MHz, N Plug
AUD Includes GST

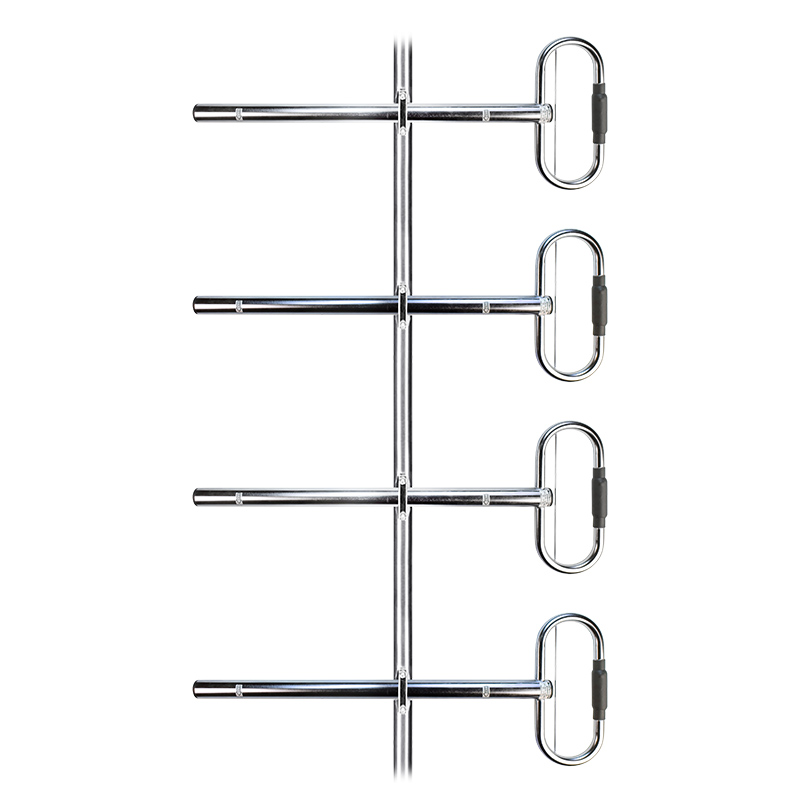

The 02680A4 is a rugged 4-bay offset dipole array designed for broadband operation in the 360–520 MHz band. Each dipole is constructed from fully welded and polished stainless steel, making it suitable for harsh environments. The array supports three mounting configurations ¼, ½, and full wavelength spacing from the vertical mounting pole allowing flexibility in shaping the radiation patterns in the H-plane.
[shipping_message]
We’re currently enabling online payment and shipping.
Shipping available:
- Description
- Specifications
Description
Benelec UHF 6-9dBd Base 4 Bay Offset Array Antenna
360-520MHz | N Plug
FEATURES
- All stainless-steel construction
- Broad H-plane pattern
- Rugged construction
- Broad VSWR bandwidth
- External phasing harness supplied
- Right-angle stainless-steel bracket included
- Factory tuned; no further tuning required
- Designed and manufactured in Australia
INSTALLATION DIMENSIONS
¼ wave: 163 mm
½ wave: 326 mm
Full wave: 652 mm
APPLICATION
Base station applications
WARRANTY
3-Year Warranty
(Refer to Benelec Terms and Conditions)
| Frequency | 360 – 520 MHz |
| Gain | 6 – 9 dBd |
| VSWR | < 1.5:1 |
| Impedance | 50 Ω nominal |
| Polarisation | Vertical |
| E-Plane Beamwidth | 32° deg (at ¼ λ) |
| H-Plane Beamwidth | Directional – see radiation patterns |
| Power | 500 W |
| Cable | RG214 cable tails |
| Termination | N plug |
| Wind Loading | 88.4 kg (194.9 lbs) (866.8 N)
with 0.5” ice @ 150 mph 120.3 kgs (265.2 lbs) (117.8 N) with 0.5” ice @ 175 mph |
| Base Material | Stainless-steel |
| Length | 820 mm |
| Net Weight | 14.4 kg |
