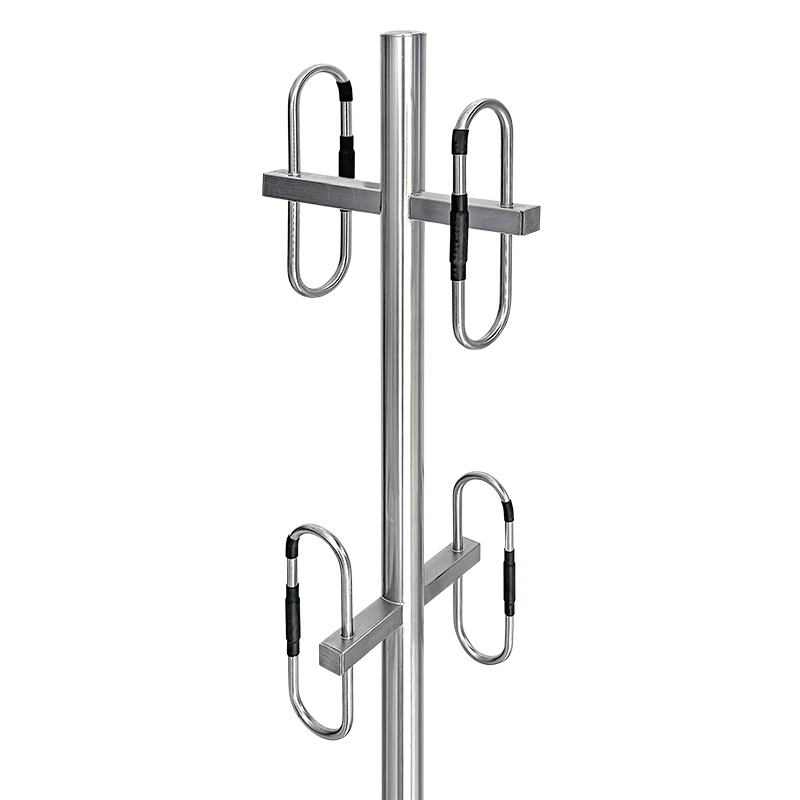

Benelec UHF 2 x 3dBd Base Omni-Dipole Dual Array Antenna with Down-tilt 400-520MHz, N Socket
AUD Includes GST
The 02681Z22T Antenna is an omni-directional dual stack array covering the full 400–520 MHz band, ideal for transmitter and receiver multi-coupling applications requiring wide bandwidth. Each 3 dBd array can be used independently and features a 3° down-tilt for improved coverage, along with low-level side lobes for enhanced performance. The antenna is built from high-grade stainless steel with all-welded construction, offering excellent durability and weather resistance. Fully enclosed internal cabling provides long-term protection, while factory tuning ensures reliable, maintenance-free operation. Proudly designed and manufactured in Australia.
[shipping_message]
We’re currently enabling online payment and shipping.
Shipping available:
- Description
- Specifications
Description
Benelec UHF 2 x 3dBd Base Omni-Dipole Dual Array Antenna
Down-tilt | 400-520MHz | N Socket
FEATURES
- All stainless-steel construction
- Full 400-520 MHz bandwidth
- All welded construction
- 3 dBd of gain
- Internal cabling
- Factory tuned; no further tuning required
- Designed and manufactured in Australia
APPLICATION
Base station applications – multi-coupling.
WARRANTY
3-Year Warranty
(Refer to Benelec Terms and Conditions)
| Frequency | 400–520 MHz |
| Gain | 3 dBd (5 dBi) for both |
| Operating Frequency | 400 – 520 MHz |
| VSWR | < 1.5:1 |
| Impedance | 50 Ω nominal |
| Polarisation | Vertical |
| Radiation | Omni-directional |
| Projected Area | 0.24842 sqm |
| Antenna Isolation | – 45 dB |
| Power | 500 W |
| Cable | RG-213 cable tail |
| Termination | N socket cable |
| Wind Loading | 32.2 kg (315.77 N) @ 160 kph |
| Base Material | Stainless-steel |
| Length | 3684 mm |
| Width | 283 mm |
| Net Weight | 16.0 kg |
