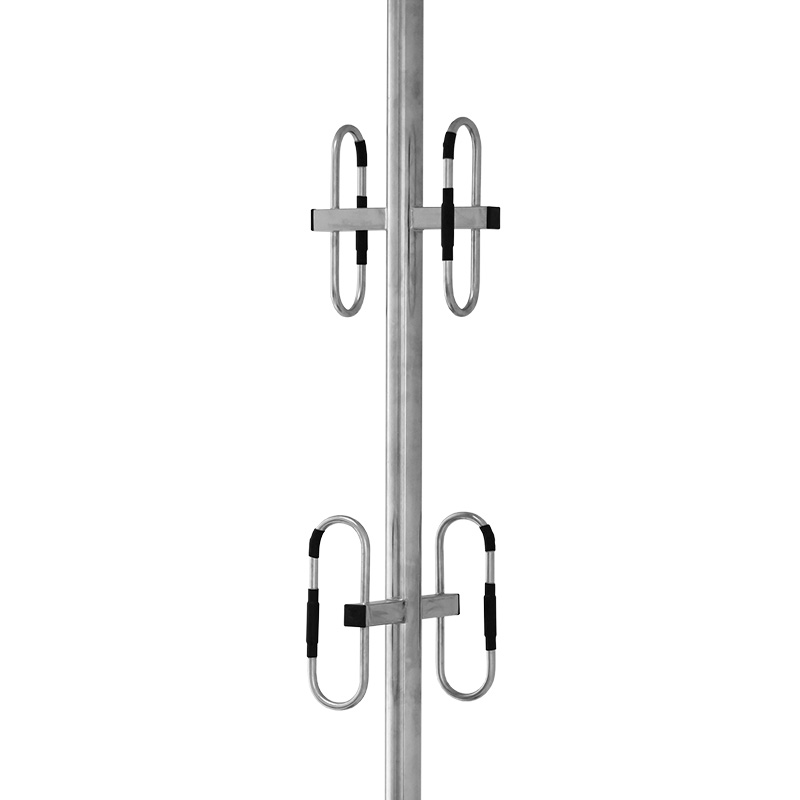

Benelec UHF 2 x 3dBd Base Omni-Dipole Dual Array Antenna 380-490MHz, N Socket
AUD Includes GST
The 02681V22 Antenna is an omni-directional dual stack array covering the full 380–490 MHz band, ideal for transmitter and receiver multi-coupling applications requiring wide bandwidth. Its dual-stack design allows each 3 dBd array to be used independently, providing flexibility and low-level side lobes for improved performance. Constructed entirely from high-grade stainless steel with all-welded joints and fully enclosed internal cabling, it delivers strength and reliability in harsh conditions. Factory tuned for precision, it requires no further adjustment and is proudly designed and manufactured in Australia.
[shipping_message]
We’re currently enabling online payment and shipping.
Shipping available:
- Description
- Specifications
Description
Benelec UHF 2 x 3dBd Base Omni-Dipole Dual Array Antenna
380-490MHz | N Socket
FEATURES
- All stainless-steel construction
- Full 380-490 MHz bandwidth
- All welded construction
- 3 dBd of gain
- Internal cabling
- Factory tuned; no further tuning required
- Designed and manufactured in Australia
APPLICATION
Base station applications – multi-coupling.
WARRANTY
3-Year Warranty
(Refer to Benelec Terms and Conditions)
| Frequency | 380-490 MHz |
| Gain | 3 dBd (5dBi) Both Antennas |
| VSWR | Less than 1.5:1 |
| Impedance | 50 Ω nominal |
| Polarisation | Vertical |
| Radiation | Omni-directional |
| Projected Area | 0.24842 SQM |
| Antenna Isolation | -35dB |
| Power | 500 W |
| Cable | RG-213 cable tail (short cable tail: 2.05 m), (long cable tail: 3.35 m) |
| Termination | N socket connector |
| Wind Loading | 32.2 kg (315.8 N) @ 160 kph |
| Base Material | Stainless-steel |
| Length | 3500 mm |
| Width | 320 mm |
| Height | 90 mm |
| Net Weight | 14.75 kg |
