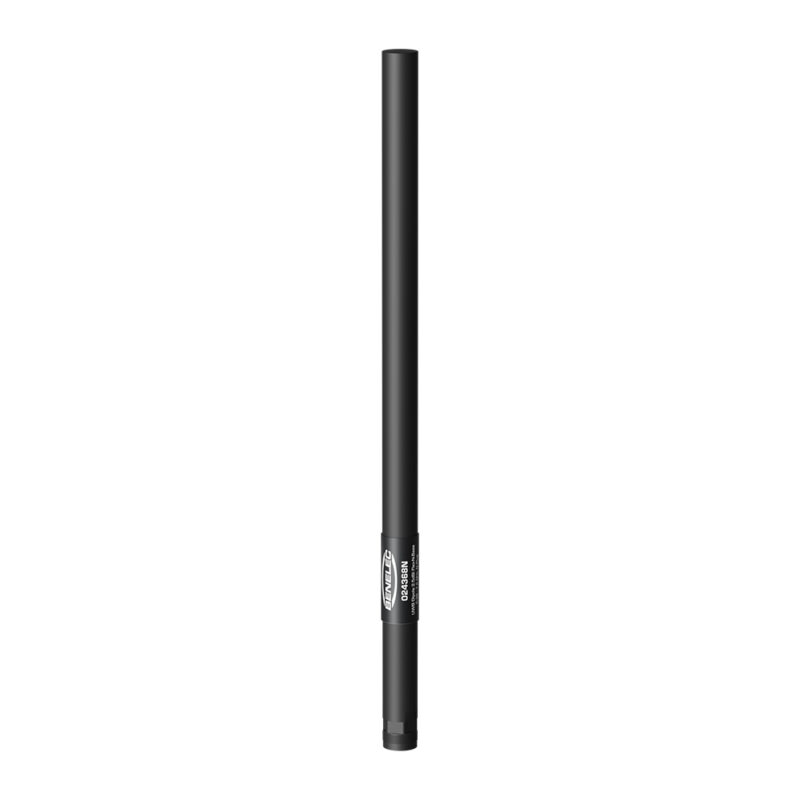

Benelec Tactical UWB 2.5dBi Flex-N-Base Antenna 0.38-7.2GHz, N Plug
AUD Includes GST
The 024368N Tactical UWB Spring Antenna is a compact, wideband solution designed for demanding military and tactical applications. Operating across 0.38–7.2 GHz, it supports point-to-point, multi-point, and mesh networking in applications such as MANET, EW, and video surveillance. The slim, discreet design allows for flexible mounting in both indoor and outdoor environments, while maintaining stable omni-directional performance with low VSWR across the full operating range.
Built with a matte black fiberglass radome, robust spring-loaded ferrule, and fixed N-type plug connector, the 024368N combines durability with impact protection. Its wide vertical beamwidth and consistent azimuth coverage ensure reliable communications, making it an ideal choice for mobile, fixed, and field-deployed systems where ruggedness and versatility are essential.
No Datasheet Found. Please submit a request below.
[shipping_message]
We’re currently enabling online payment and shipping.
Shipping available:
- Description
- Specifications
Description
Benelec Tactical UWB 2.5dBi Spring Antenna
0.38-7.2 GHz | N Plug
FEATURES
- Matte black fiberglass radome and connector
- Fixed N type plug connector
- Slim and compact design
- Robust spring – loaded ferrule
- Durable
- Factory tuned; no further tuning required
- Designed and manufactured in Australia
APPLICATION
Military MANET and link applications.
WARRANTY
3-Year Warranty
(Refer to Benelec Terms and Conditions)
| Frequency | 0.38 – 7.2 GHz |
| VSWR | < 2.5:1 (380 MHz – 7.2 GHz) |
| Impedance | 50 Ω |
| Horizontal Beamwidth (AZ) | 360° ± 2 dB Az deviation |
| Vertical Beamwidth (EL) | 70° – 100° |
| Polarisation | Vertical |
| Radiation | Omni-directional |
| Termination | N plug fixed |
| Power | 15 W (RMS) |
| Length | 417 mm |
| Diameter | 20 mm (max) |
| Net Weight | 140 g |
