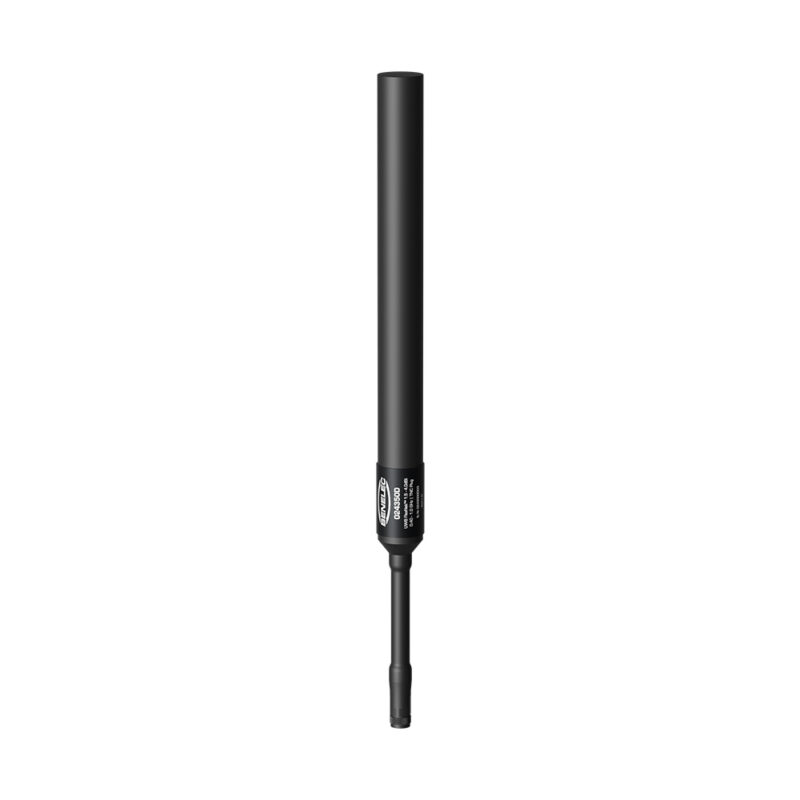

Benelec Tactical UWB 1.5-4.0dBi FlexNek™ Antenna 0.4-1.0GHz, TNC Plug
AUD Includes GST
The 024350D Tactical UWB FlexNek™ Antenna is a high-performance solution designed for professional use in the 0.40–1.0 GHz band. Delivering between +2.0 and +4.0 dBi gain with omni-directional coverage, it supports MANET, electronic warfare, point-to-point, multi-point, and mesh network applications. Its slim, discreet design allows for versatile deployment across indoor and outdoor environments, making it suitable for demanding tactical operations.
Built with a matte black fibreglass radome and FlexNek™, the 024350D provides durability and resilience in harsh field conditions. With a fixed TNC plug connector, IP67 weatherproofing, and operation across –40 °C to +85 °C, this antenna ensures reliable performance under extreme conditions. Its radiator design offers consistent low VSWR across the band, while the 90° FlexNek™ bend angle adds further mechanical protection in rugged environments.
No Datasheet Found. Please submit a request below.
[shipping_message]
We’re currently enabling online payment and shipping.
Shipping available:
- Description
- Specifications
Description
Benelec Tactical UWB 1.5-4.0dBi FlexNek™ Antenna
0.4-1.0GHz | TNC Plug
FEATURES
- Matte black fiberglass radome
- Fixed TNC type plug connector
- FlexNek™ and connector matte black
- Slim and compact design
- Robust
- Durable
- Factory tuned; no further tuning required
- Designed and manufactured in Australia
APPLICATION
- Military MANET (mobile ad hoc network)
- EW, point, multipoint and mesh applications
- Video surveillance transmission systems
WARRANTY
3-Year Warranty
(Refer to Benelec Terms and Conditions)
| Frequency | 0.4 – 1.0 GHz |
| Gain | +2.0 to +4.0 dBi See realised gain response next page |
| VSWR | <2.6:1
(400 MHz-1.0 GHz) |
| Impedance | 50 Ω |
| Polarisation | Vertical |
| Radiation | Omni-directional |
| Horizontal Beamwidth (AZ) | 360° +/- 2 dB Az deviation |
| Vertical Beamwidth (EL) | 70° – 100° |
| Termination | TNC plug (fixed) |
| RF Power | 50 W |
| FlexNek™️ Bend Angle | 90° |
| IP Rating | IP67 |
| Temperature Rating | -40 °C to +85 °C |
| Length | 470 mm (max) |
| Diameter | 32 mm (max) |
| Net Weight | 210 g |
