Benelec Tactical S & C Band 3.0dBi Flex-TNC-Base Antenna 2.1-2.5GHz & 4.0-6.0GHz, TNC Plug
AUD Includes GST

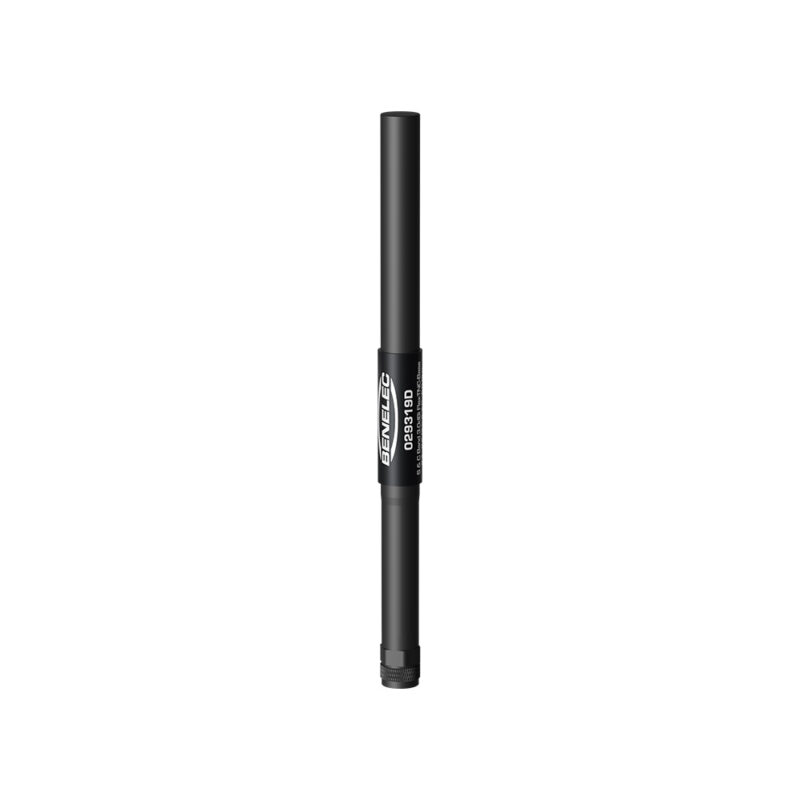

The 029319D is a high-performance antenna featuring an integrated spring and fixed-rotation TNC plug, designed for use in the 2 GHz and 5 GHz military mesh network bands. Optimised for a wide range of wireless systems, it supports point-to-point, multipoint, and mesh network configurations. Typical applications include MANET and video surveillance transmitters. Its compact, slimline design makes it ideal for discrete mounting in both indoor and outdoor environments. The antenna provides a stable radiation pattern with consistent performance across the horizon in each band.
No Datasheet Found. Please submit a request below.
[shipping_message]
We’re currently enabling online payment and shipping.
Shipping available:
- Description
- Specifications
Description
Benelec Tactical S+C Dual Band 3.0dBi Antenna
Shock Spring Fixed Rotation | TNC Plug
FEATURES
- Matte black fiberglass radome
- Integrated shock spring
- Spring integrated fixed TNC plug connector
- Slim and compact design
- Robust and durable
- Designed and manufactured in Australia
APPLICATION
Military MANET and link applications.
WARRANTY
3-Year Warranty
(Refer to Benelec Terms and Conditions)
| Frequency | 2.1 – 2.5 GHz & 4.0 – 6.0 GHz |
| Gain | 3.0dBi |
| VSWR | <2.5:1 (2.1 – 2.5 GHz) <2.5:1 (4.0 – 6.0 GHz) |
| Impedance | 50 Ω |
| Polarisation | Vertical |
| Radiation | Omni-directional |
| Horizontal Beamwidth (AZ) | 360° |
| Vertical Beamwidth (EL) | 92° |
| Termination | TNC plug (fixed) |
| RF Power Rating | 20 W @ 25° C |
| IP Rating | IP67 |
| Length | 215 mm |
| Diameter | 14.5 mm |
| Net Weight | 55 g |
