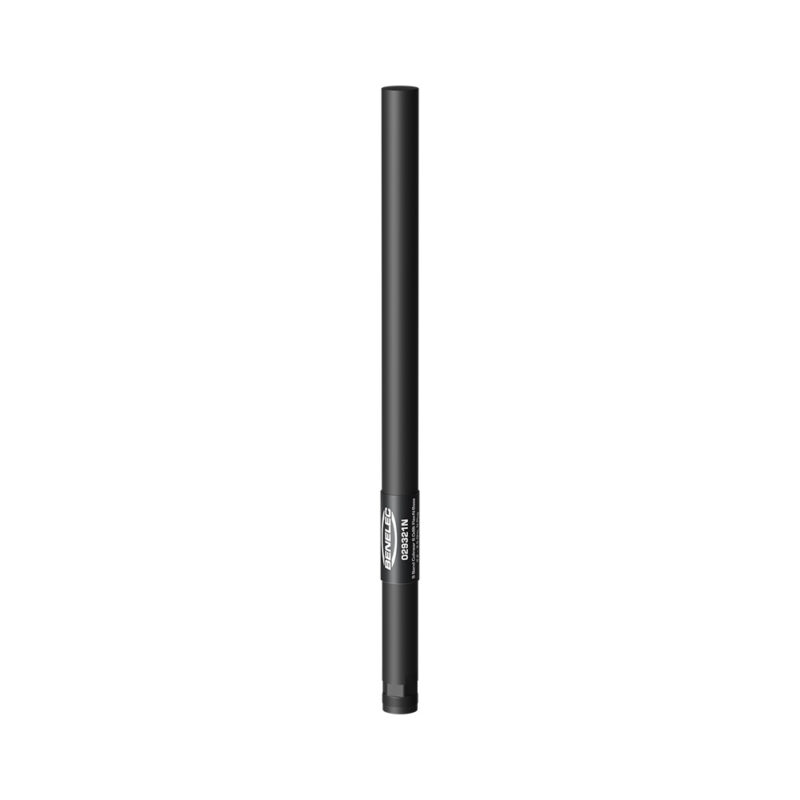

Benelec Tactical S Band Colinear 6.0dBi Spring Antenna 2.2–2.5GHz, N Plug
AUD Includes GST
The 029321N is a compact, high-gain colinear antenna engineered for reliable performance across the 2.2–2.5 GHz. Built with a durable matt black fiberglass radome and an integrated shock spring, it is designed to withstand demanding conditions while maintaining stable, omni-directional coverage. Its slim profile and fixed N plug connector make it simple to deploy across a wide range of wireless applications without the need for further tuning.
Optimised for public safety MANET networks, WLAN access points, bridging (802.11), and video surveillance transmitters, the 029321N delivers consistent horizon coverage with a clean radiation pattern. Its discrete form factor allows for both indoor and outdoor use, while optional magnetic bases provide flexible mounting options. Rugged, lightweight, and purpose-built, this antenna offers a dependable solution for mission-critical communications.
No Datasheet Found. Please submit a request below.
[shipping_message]
We’re currently enabling online payment and shipping.
Shipping available:
- Description
- Specifications
Description
Benelec Tactical S Band Colinear 6.0dBi Spring Antenna
2.2–2.5 GHz | N Plug
FEATURES
- Matte black fiberglass radome
- Fixed N type plug connector
- Integrated shock spring
- Slim and compact design
- Robust
- Durable
- Factory tuned; no further tuning required
- Designed and manufactured in Australia
APPLICATION
Public Safety, MANET and Link Applications.
WARRANTY
3-Year Warranty
(Refer to Benelec Terms and Conditions)
| Frequency | 2.2– 2.5 GHz |
| Gain | 6 dBi |
| VSWR | <2.0:1 (2.2 – 2.5 GHz) |
| Impedance | 50 Ω |
| E Plane | 30° |
| H Plane | 360° |
| Polarisation | Vertical |
| Radiation | Omni-directional |
| Termination | N Plug (fixed) |
| Length | 350 mm |
| Diameter | 20 mm |
| Net Weight | 110 g |
