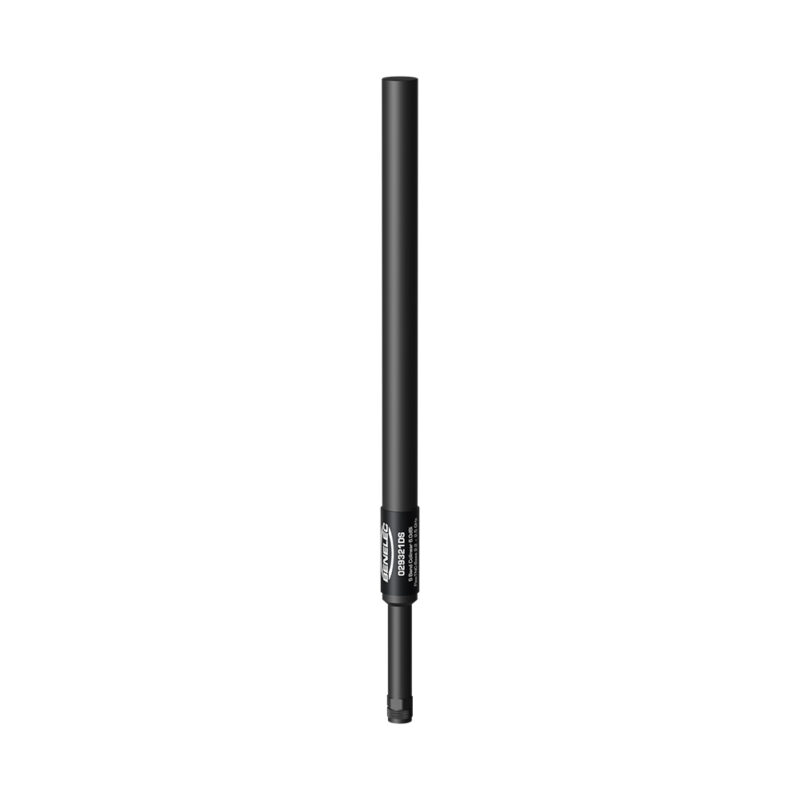

Benelec Tactical S Band 6.0dBi FlexNek™ Antenna 2.2-2.5GHz, TNC Plug
AUD Includes GST
The model 029321DS is a high-performance antenna designed for the 2.2-2.5GHz Military and Public Safety band. Optimised for a wide range of wireless systems, it supports point-to-point, multi-point, and mesh network configurations. Typical applications include MANET, WLAN access points or bridges (802.11), and video surveillance transmitters. Its compact, slimline form factor enables discreet mounting in both indoor and outdoor environments. The radiation pattern delivers stable, horizon-focused performance across the entire band.
No Datasheet Found. Please submit a request below.
[shipping_message]
We’re currently enabling online payment and shipping.
Shipping available:
- Description
- Specifications
Description
Benelec Tactical S Band Colinear 6.0dBi Spring base Antenna
2.2–2.5GHz | TNC Plug
FEATURES
- Matte black fiberglass radome
- Integrated shock spring
- Fixed TNC plug connector
- Slim and compact design
- Robust and durable
- Factory tuned; no further tuning required
- Designed and manufactured in Australia
APPLICATION
Public safety, MANET, and link applications.
WARRANTY
3-Year Warranty
(Refer to Benelec Terms and Conditions)
| Frequency | 2.2–2.5GHz |
| Gain | 6dBi |
| VSWR | <2.0:1 (2.2–2.5GHz) |
| Impedance | 50 Ω |
| Polarisation | Vertical |
| Radiation | Omni-directional |
| E Plane | 30° |
| H Plane | 360° |
| Termination | TNC plug (fixed) |
| RF Power | 20 W @ 25 deg C |
| IP Rating | IP67 |
| Temp Rating | -40° to 85° C |
| Wind Loading | 0.44 kg (@160 kph) |
| Antenna Length | 365 mm |
| Radome O.D. | 20.5 mm |
| Net Weight | 110 g |
