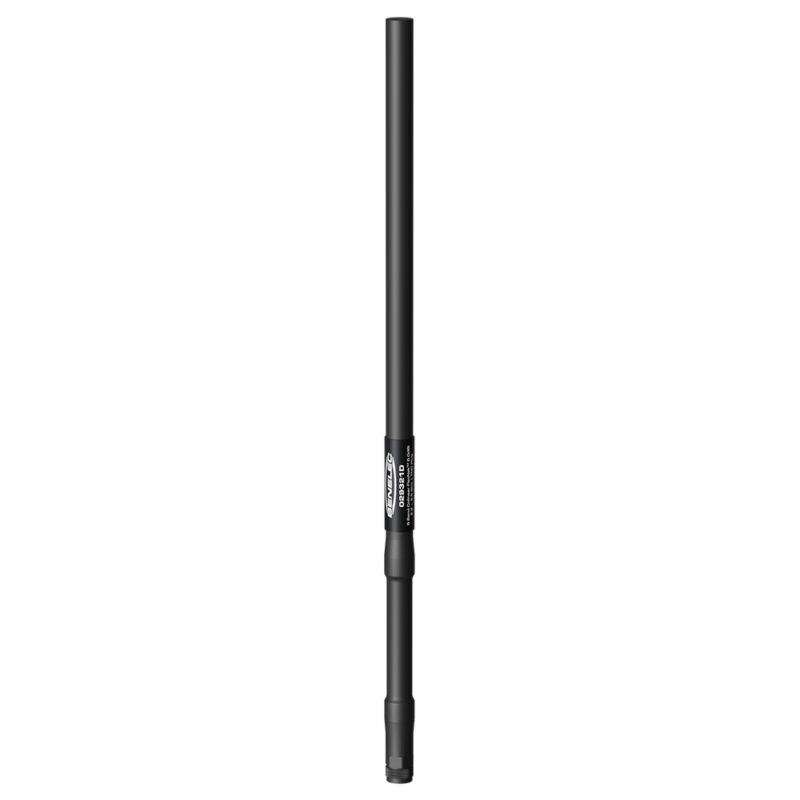

Benelec Tactical S Band 6dBi FlexNek™ Antenna 2.2-2.5GHz, TNC Plug
AUD Includes GST
The 029321D Tactical S Band Colinear Antenna is a high-performance solution designed for reliable operation across the 2.2–2.5 GHz public safety band. Optimised for use in a wide range of wireless systems, it supports point-to-point, multi-point, and mesh configurations. Typical applications include MANET (mobile ad hoc networks), WLAN access points or bridges (802.11), and video surveillance transmitters, making it highly versatile for both defence and public safety use.
Its compact, slimline form factor enables discreet mounting in both indoor and outdoor environments, while the FlexNek™ technology and matte black fibreglass radome provide durability in harsh conditions. With IP67 protection, a wide operating temperature range, and stable horizon-focused coverage, the 029321D delivers consistent, mission-ready performance.
No Datasheet Found. Please submit a request below.
[shipping_message]
We’re currently enabling online payment and shipping.
Shipping available:
- Description
- Specifications
Description
Benelec Tactical S Band Colinear 6.0dBi FlexNek™ Antenna
2.2–2.5 GHz | TNC Plug
FEATURES
- Matte black fiberglass radome
- Integrated shock spring
- Fixed TNC plug connector
- Slim and compact design
- Robust and durable
- Designed and manufactured in Australia
APPLICATION
Public safety, MANET, and link applications.
WARRANTY
3-Year Warranty
(Refer to Benelec Terms and Conditions)
| Frequency | 2.2–2.5 GHz |
| Gain | 6 dBi |
| VSWR | <2.0:1 (2.2–2.5GHz) |
| Impedance | 50 Ω |
| Polarisation | Vertical |
| Radiation | Omni-directional |
| Horizontal Beamwidth (AZ) | 360° |
| Vertical Beamwidth (EL) | 30° |
| Termination | TNC plug (fixed) |
| RF Power | 20 W @ 25 °C |
| FlexNek™️ Bend Angle | 90° |
| IP Rating | IP67 |
| Temp Rating | -40° to +85° C |
| Wind Loading | 0.44 kg (@160 kph) |
| Length | 410 mm |
| Diameter | 14.5 mm |
| Net Weight | 110 g |
