Benelec Tactical Dual L Band 8.5dBi UAV Dual Port Directional Ground Station Antenna 1.35-1.44GHz, TNC Socket
AUD Includes GST

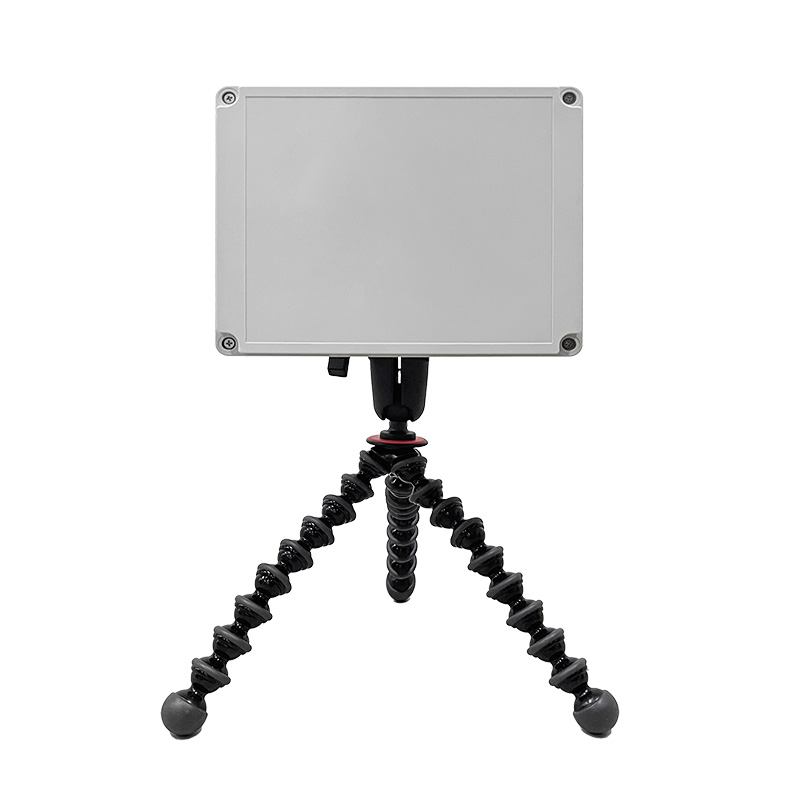

The 029213P is a high-performance dual-port directional antenna designed for fixed L-band applications (1350–1440 MHz). Delivering 8.5 dBi gain per port, it ensures strong, reliable connectivity with excellent beam control and consistent performance across the operating band.
Its compact and rugged construction provides dependable operation in both indoor and outdoor environments. The IP67-rated ABS enclosure protects against dust, moisture, and harsh conditions, making it ideal for tactical and field-deployed systems.
Equipped with dual TNC bulkhead connectors and supplied with two 2 m low-loss LL195 leads, the 029213P is simple to integrate into UAV ground stations or fixed-site communication systems. A directional radiation pattern with clean beamwidth and high front-to-back ratio enhances signal clarity, while the AMPS stud mounting pattern supports a wide range of bracket configurations.
Reliable, compact, and durable, the 029213P is purpose-built for demanding L-band communications
No Datasheet Found. Please submit a request below.
[shipping_message]
We’re currently enabling online payment and shipping.
Shipping available:
- Description
- Specifications
Description
Benelec Tactical Dual L Band 8.5dBi UAV Dual Port Directional Ground Station Antenna
1.35-1.44GHz | TNC Socket
FEATURES
- L-Band 1350–1440 MHz
- Suitable for indoor or outdoor use
- IP67-rated ABS enclosure for durability
- Dual TNC bulkhead socket connectors
- AMPS stud mounting pattern
- Wide range of mounting brackets available
- Supplied with 2 x 2m low-loss LL195 leads (TNC plug to TNC plug)
- Reliable, durable and compact
APPLICATION
Fixed solutions suited for use in the L band.
WARRANTY
3-Year Warranty
(Refer to Benelec Terms and Conditions)
| Frequency | 1350 – 1440 MHz |
| Gain | 8 dBi x 2 |
| VSWR | < 1.6:1 |
| Impedance | 50 Ω |
| Radiation | Directional |
| P1 to P2 Isolation | 19 dB |
| HPBW (E-plane) | 59° |
| HPBW (H-plane) | 94° |
| F/B | 16 dB |
| Termination | TNC socket x 2 bulkhead mounted |
| Power Rating | 10 W at each antenna port |
| Dimensions | 254 (L) x 204 (W) x 91 (H) mm |
| Net Weight | 950 g |
