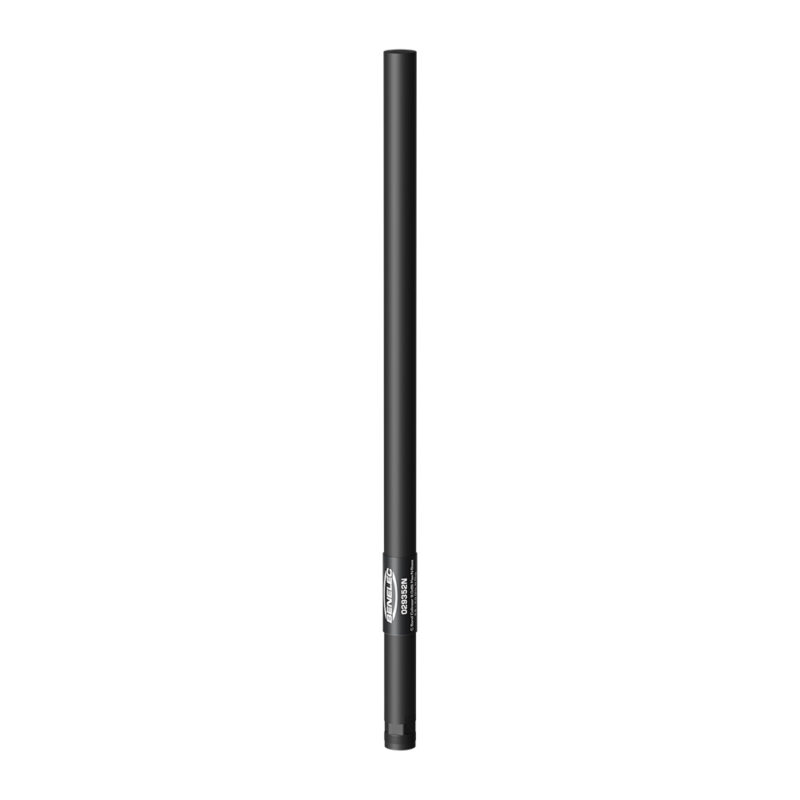

Benelec Tactical C Band Colinear 9dBi Spring Antenna 4.9-5.0GHz, N Plug
AUD Includes GST
The 029352N is a high-gain base station antenna designed for operation in the 4.9–5.0 GHz public safety band. Optimised for a wide range of wireless systems, it supports point-to-point, multi-point, and broadcast configurations. Typical applications include MANET, WLAN access points or bridges (802.11), and video surveillance transmitters. Its compact slimline design allows for discreet mounting in both indoor and outdoor environments, while the radiation pattern provides stable horizon coverage across the entire band.
No Datasheet Found. Please submit a request below.
[shipping_message]
We’re currently enabling online payment and shipping.
Shipping available:
- Description
- Specifications
Description
Benelec Tactical C Band 9dBi Colinear Antenna
4.9-5.0GHz | N Plug
FEATURES
- Matt black fiberglass radome
- Sidelobe level
- Fixed N type connector
- Slim and compact design
- Robust spring-loaded ferrule
- Robust and durable
APPLICATION
Public safety MANET and link applications.
WARRANTY
3-Year Warranty
(Refer to Benelec Terms and Conditions)
| Frequency | 4.9-5.0GHz |
| Gain | 9 dBi |
| VSWR | <1.5:1 |
| Impedance | 50 Ω |
| Polarisation | Vertical |
| Radiation | Omni Directional +/- 1 dB |
| Beam Tilt | 0-3° |
| HPBW | 8.5° |
| SLL (side lobes) | <-10 dB |
| Power Rating | 4 watts at 25° C |
| Element Potential | D.C grounded |
| Termination | N Plug (fixed) |
| Wind Loading | 0.44kg (@160KPH) |
| Tip Deflection | <=1.5° |
| Length | 470 mm |
| Maximum Width | 20 mm at connector |
| Net Weight | 115 g |
