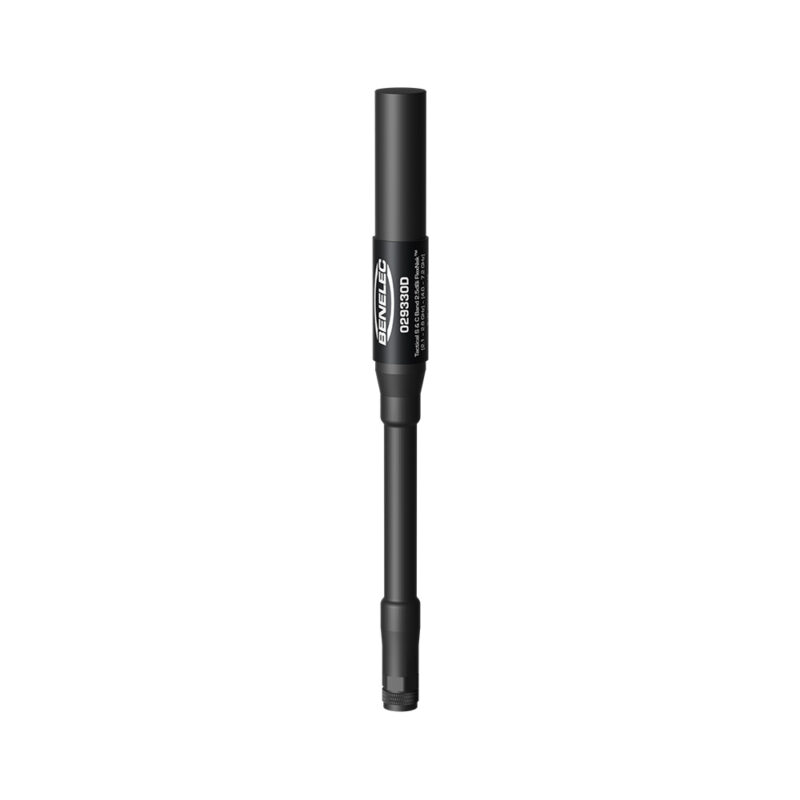

Benelec S & C Broadband 2.5dBi FlexNek™ Antenna 2.1-2.8GHz / 4.0-7.2GHz (Optimised), TNC Plug
AUD Includes GST
The 029330D is a high-performance tactical FlexNek™ optimised antenna designed for use in the 2.1 -2.8 GHz and 4 up to 7.2 GHz WiFi 6 band military mesh network bands. Optimised for a wide range of wireless systems, it supports point-to-point, multi-point, and mesh network configurations. Typical applications include MANET and video surveillance transmitters. Its compact slimline design enables discreet mounting in both indoor and outdoor environments. The stable radiation pattern ensures consistent performance on the horizon across each band.
No Datasheet Found. Please submit a request below.
[shipping_message]
We’re currently enabling online payment and shipping.
Shipping available:
- Description
- Specifications
Description
Tactical S & C Band 2.5dBi FlexNek™ Optimised Antenna
[2.1 – 2.8 GHz] – [4.0 – 7.2 GHz]
FEATURES
- Matt black fiberglass radome
- Fixed TNC type plug connector
- FlexNek™ and connector matt black
- Slim and compact design
- Robust am durable
- Designed and manufactured in Australia
APPLICATION
- Military MANET (Mobile Ad Hoc Network)
- EW, point, multipoint and mesh applications
- Video surveillance transmission systems
WARRANTY
3-Year Warranty
(Refer to Benelec Terms and Conditions)
| Frequency | Band 1: 2.1–2.8GHz |
| Band 2: 4.0–7.2GHz | |
| Gain | Band 1: 2.5dBi |
| Band 2: 2.5dBi | |
| VSWR | Band 1: <2.0:1 |
| Band 2: <2.0:1 | |
| Impedance | 50 Ω |
| Polarisation | Vertical |
| Radiation | Omni-directional |
| Horizontal Beamwidth (AZ) | 360° |
| Vertical Beamwidth (EL) | 30° – 93° |
| Termination | TNC Plug (fixed) |
| RF Power | 20 W @ 25° C |
| FlexNek™ Max. Bend Angle | 90° |
| IP Rating | IP67 |
| Temp Rating | -40° to 85° C |
| Length | 255 mm |
| Diameter | 20.5 mm |
| Net Weight | 105 g |
