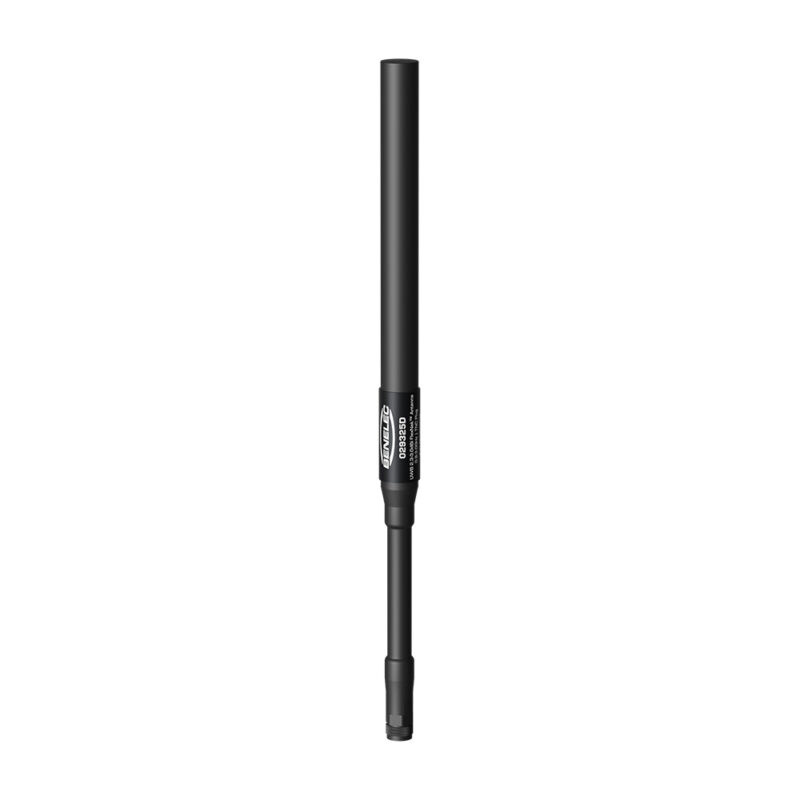

Benelec L & S Broadband 2.3-3.0dBi FlexNek™ Antenna 0.9-3.0GHz (Optimised), TNC Plug
AUD Includes GST
The 029325D is a high-performance optimised antenna designed for use in the UWB (Ultra-Wide Bandwidth) military band. Optimised for a wide range of wireless systems, it supports point-to-point, multi-point, and mesh network configurations. Typical applications include EW, MANET, and video surveillance transmitters. The antenna’s stable radiation pattern and unique radiator design ensure consistent VSWR performance across the bands of interest. Its compact slimline form enables discreet installation in both indoor and outdoor environments.
No Datasheet Found. Please submit a request below.
[shipping_message]
We’re currently enabling online payment and shipping.
Shipping available:
- Description
- Specifications
Description
Benelec UWB 2.3-3.0dBi FlexNek™ Optimised Antenna
0.9-3.0GHz | TNC Plug
FEATURES
- Matt black fibreglass radome
- Fixed TNC type plug connector
- FlexNek™ and connector matt black
- Slim and compact design
- Robust and durable
- Designed and manufactured in Australia
APPLICATION
- Military MANET (Mobile Ad Hoc Network)
- EW, point, multipoint and mesh applications
- Video surveillance transmission systems
WARRANTY
3-Year Warranty
(Refer to Benelec Terms and Conditions)
| Frequency | 0.9-3.0GHz |
| Gain | 2.3 to 3.0 dBi See realized gain response next page |
| VSWR | < 2.8:1 |
| Impedance | 50 Ω |
| Polarisation | Vertical |
| Radiation | Omni-directional |
| Horizontal Beamwidth (AZ) | 360° +/- 2 dB Az deviation |
| Vertical Beamwidth (EL) | 70° – 100° |
| Termination | TNC Plug (fixed) |
| RF Power | 50 W |
| FlexNek™️ Max. Bend Angle | 90° |
| IP Rating | IP67 |
| Temp Rating | -40° to 85° C |
| Length | 375 mm Max. |
| Diameter | 20 mm Max. |
| Net Weight | 100 g |
