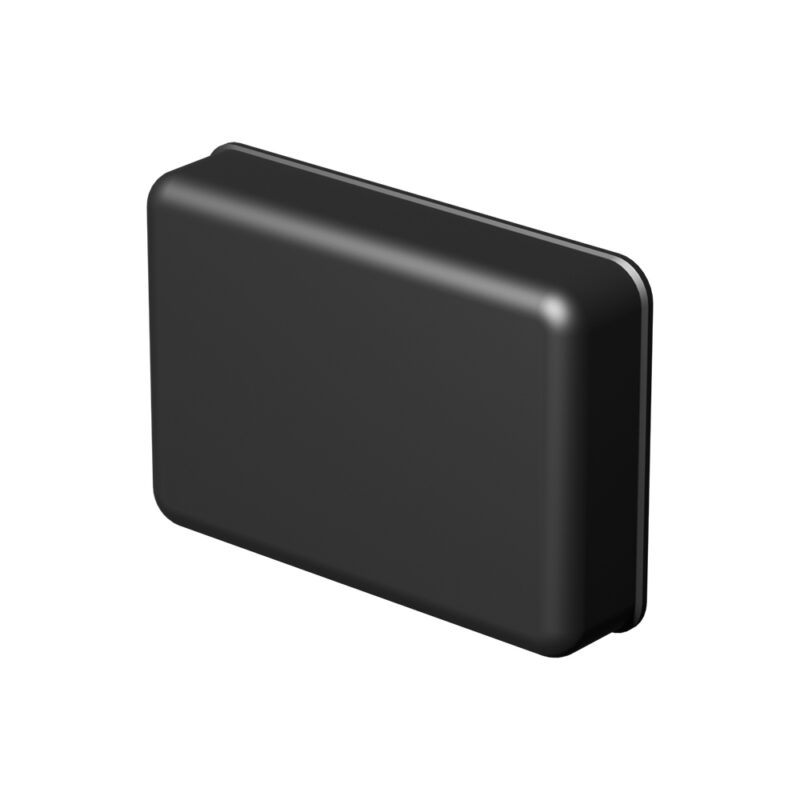

Benelec L & S Band 2×2 Slant 9dBi Polarised Directional Panel, 1.2-1.6GHz &2.1-2.8GHz, TNC Socket
AUD Includes GST
The 029332 is a 2×2 panel antenna designed for multi-port MIMO and MANET radio platforms, operating across the L- and S-bands (1.2–1.6 GHz and 2.1–2.8 GHz) with a maximum gain of 9 dBi. It features two independent antenna elements, each with its own TNC connector, configured for +45° and –45° slant polarisation. This dual-polarised design improves transmit and receive diversity, enhancing overall system performance. The antenna also incorporates a rear AMPS mounting pattern, providing a wide range of mounting options.
No Datasheet Found. Please submit a request below.
[shipping_message]
We’re currently enabling online payment and shipping.
Shipping available:
- Description
- Specifications
Description
Benelec L & S Band 9dBi Band Dual Directional Panel Antenna
Slant L/R Polarized | 1.2–1.6GHz & 2.1–2.8GHz | 2 x TNC Socket
FEATURES
- 2 Input 2X2 Panel Antenna with 73° Peak Azimuth
- Dual Polarized Design: 1x 45° Slant Left and 1x 45° Slant Right
- 9dBi maximum Gain
- 50W Power Handling
- Designed and manufactured in Australia
APPLICATIONS
- 2X2 MIMO / MANET Radio Networks
- Infrastructure Base Stations
- UxS Ground Station Antenna
- Planned City Wide / Urban Area Mesh Radio Networks
- Rapid Deploy Networks for Event Management and Security
- Emergency Management & Public Safety
WARRANTY
3-Year Warranty
(Refer to Benelec Terms and Conditions)
| Frequency | 1.2-1.6GHz & 2.1-2.8GHz |
| Gain | 9dBi peak |
| Front to Back Ratio | Typically, 13dB |
| VSWR | < 2.5:1 |
| Impedance | 50 Ω |
| Frequency Bandwidth | 400MHz / 700MHz |
| Polarization | Slant L/R 45 deg |
| Port isolation | Typically, 18 dB |
| RF Input Power | 50 W |
| Horizontal AZ Beamwidth | 74° |
| Vertical EL Beamwidth | 62° |
| Operating Temperature | -45° to +80° C |
| IP Rating | IP67 |
| Termination | 2 x TNC Socket |
| Dimensions | 200 [L] x 140 [W] x 30 [D] mm |
| Net Weight | 500 g |
