Benelec 6dBi Omni High Vibration Antenna 2400-2485MHz, N Socket
AUD Includes GST
The 029314BH is an omni-directional 5 dBi gain antenna designed for the 2400–2485 MHz band. Optimised for a wide range of wireless systems, it is suitable for point-to-point, multi-point, and broadcast configurations. Typical applications include WLAN access points and bridges (802.11), as well as video surveillance transmitters. Built with conformal foam dampening, the 029314BH is ruggedised to withstand the demanding conditions of heavy mining and construction environments.
[shipping_message]
We’re currently enabling online payment and shipping.
Shipping available:
- Description
- Specifications
Description

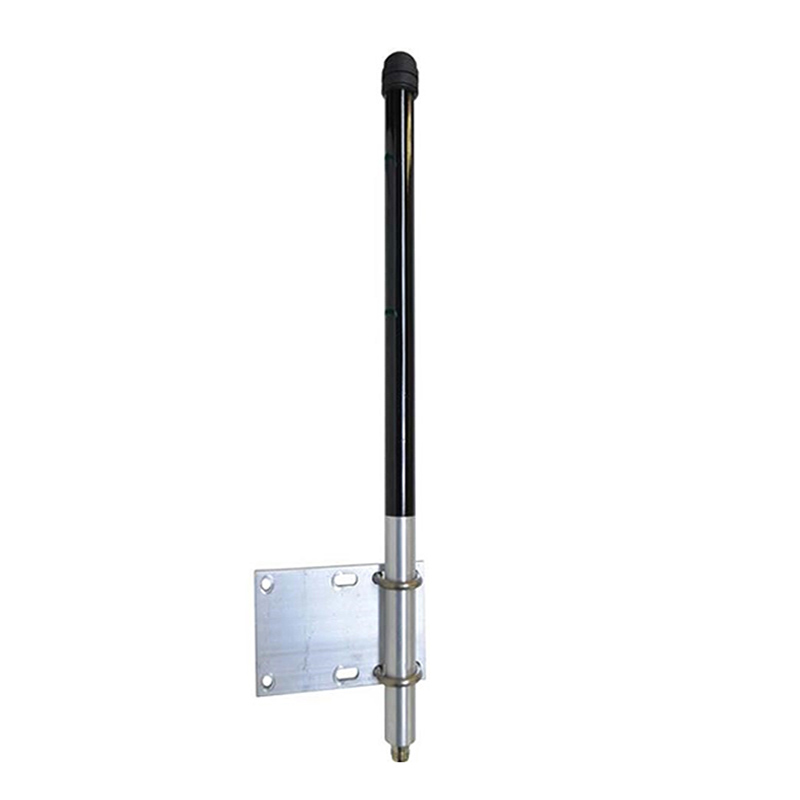

Benelec 6dBi Omni High Vibration Antenna
2400-2485MHz | N Socket
FEATURES
- Black fiberglass radome
- Foam filled
- Fixed N female type connector
- Compact design
- Mast mount kit included
- Factory tuned; no further tuning required
- Designed and manufactured in Australia
APPLICATION
ISM data link applications and high vibration environment (mining, field construction, etc).
WARRANTY
12-Month Warranty
(Refer to Benelec Terms and Conditions)
| Frequency | 2400-2485 MHz
5150 – 5925 MHz |
| Gain | 5 dBi |
| VSWR | < 2:1 |
| Impedance | 50 Ω |
| Vertical Beamwidth
(-3 db point) |
25° |
| Power Rating | 100 W |
| Temperature Rating | -40 °C to + 85 °C |
| Wind Velocity | 200+ kph |
| Termination | N socket |
| Construction | Black fiberglass with irradiated aluminium |
| Mounting | Mast up to 64 mm |
| Shock & Vibration | EN 300 019-2-4, IEC 60068 |
| Water Ingress | IPx5 |
| Length | 330 mm |
| Diameter | 25 mm |
| Net Weight | 700 g |
