Benelec 10 Band Low Profile Antenna 4 x 5G, 4 x Wi-Fi, 2 x GNSS Filtered

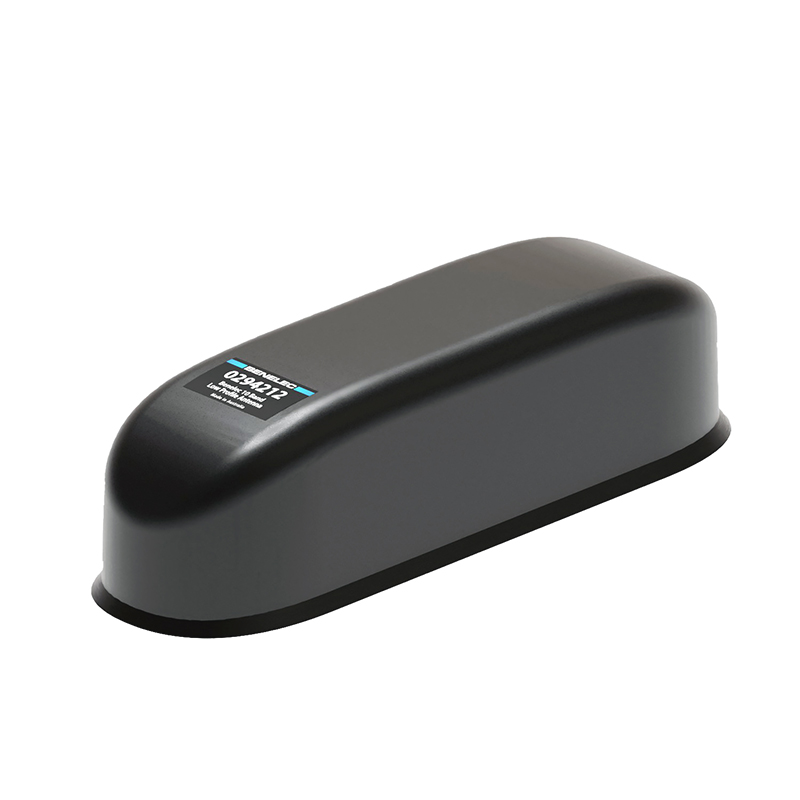

Benelec’s 0294212 roof-mounted mobile multiband antenna is built for Public Safety applications. This antenna includes multiple 5G, Dual-Band Wi-Fi 2.4/5.8GHz, and GNSS Antenna capability. The shape is designed to suit all vehicle roof types including rib top sections. It is a practical, easy-to-install antenna option for modern MiMo requirements with up to 10 antennas used for Public Safety Mobile applications.
- Description
- Specifications
Description
Low Profile Multiband Antenna | 10 Port
Benelec’s 0294212 Multi-band roof-mounted mobile antenna is built for Public Safety applications. This antenna includes multiple 5G, Dual-Band Wi-Fi 2.4/5.8GHz, and GNSS Antenna capability. The shape is designed to suit all vehicle roof types including rib top sections. It is a practical, easy-to-install antenna option for modern MiMo requirements with up to 10 antennas used for Public Safety Mobile applications.
FEATURES
- 4 x 5G Antenna (617 – 960 MHz and 1710 – 7200 MHz)
- 4 x Wi-Fi 2.4 – 2.5 GHz and 4.7 – 7.2 GHz
- 2 x GNSS Antenna for GPS L1, Glonass, Beidou & Galileo
- No diplexer required.
- Full hemispherical coverage for the GNSS bands
- Built-in high gain, low noise amplifier
- GPS Right-Hand Circular Polarisation
- 5 – 3.6 VDC for GNSS supply
- DC supply via GNSS SMA Plug – Connector
- All bands ground independent.
WARRANTY
3 years (Please refer to Benelec Terms & Conditions)
| Materials | High impact resistant U.V STABLE (ASA) |
| Installation Torque | 4 +/- 0.5 Nm |
| Colour | Black |

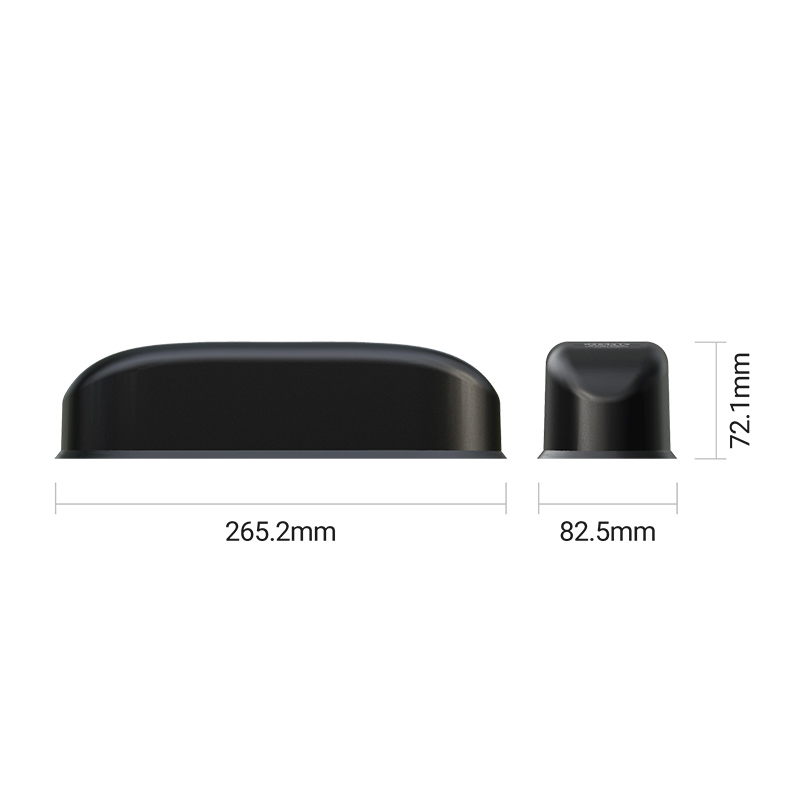

| Dimensions | Approx. L 270mm W 84mm H 74mm |
| Max. Roof Thickness | 10 mm |
| GNSS
BeiDou/(GPS/QZSS
|
System Gain 28dBi including cable and filter losses.
Polarisation RHCP Noise figure 1.8 dB @2.7 V Out of band isolation >43 dB ESD 6 Kv |
| GNSS Voltage range | 1.5-3.6 VDC |
| Weight | 0.35 kgs |
| Mounting | 23 mm (7/8”) diameter hole Conformal neoprene gasket allows for Max roof curvature: 3.0 mm (on 270 mm) |
| Cable Length | Dual GPS & GNSS: 120mm x 2 Flex RG405 Dual Wi-Fi: 370mm x 4 Flex RG405 Quad 5G: 320mm x 4 Flex RG405 |
| Terminations | SMA plug x 10 on Flex RG405 dual screen cable |
| Frequency | 4 x 5G Ports: 617 – 960 MHz, 1710 – 7200 MHz
4 x WIFI Ports: 2100 – 2700 MHz, 4700 – 7200 MHz 2 x GNSS Ports: 1559 – 1609 MHz (GPS L1, Glonass, Beidou and Galileo) |
| Antenna Type | Mobile multi band Roof Panel mounted Antenna |
| Polarisation | Vertical |
| Impedance | 50 Ω |
| Gain (peak) | 5G 4dBi (617 – 960 MHz) 5G 7dBi (1710 – 7200 MHz) Wi-Fi 6dBi (2.4 GHz & 5.8 GHz) |
| Port Isolation
|
(With 3m 05603) diagonally opposed ports recommended for best decorrelation in 5G as marked A and B MIMO pairs.
>=15.0 dB :617 – 2500MHz >=25.0 dB :3000-7200MHz |
| Correlation Coefficient | 617 – 700 MHz =0.1 700 – 960 MHz =0.08 1710 – 7200 MHz 0.04 |
| VSWR 5G
VSWR Wi-Fi |
< 2.0:1 for (617MHz -7.2 GHz)
<2.0:1 for (2.1 -2.7 GHz) -(4.7-7.2 GHz) |
| Max. Input Power | 10 W for 5G and WIFI |
| Operating Temperature Range | -50°C to +75°C |
| Water Resistance | IP67 |
