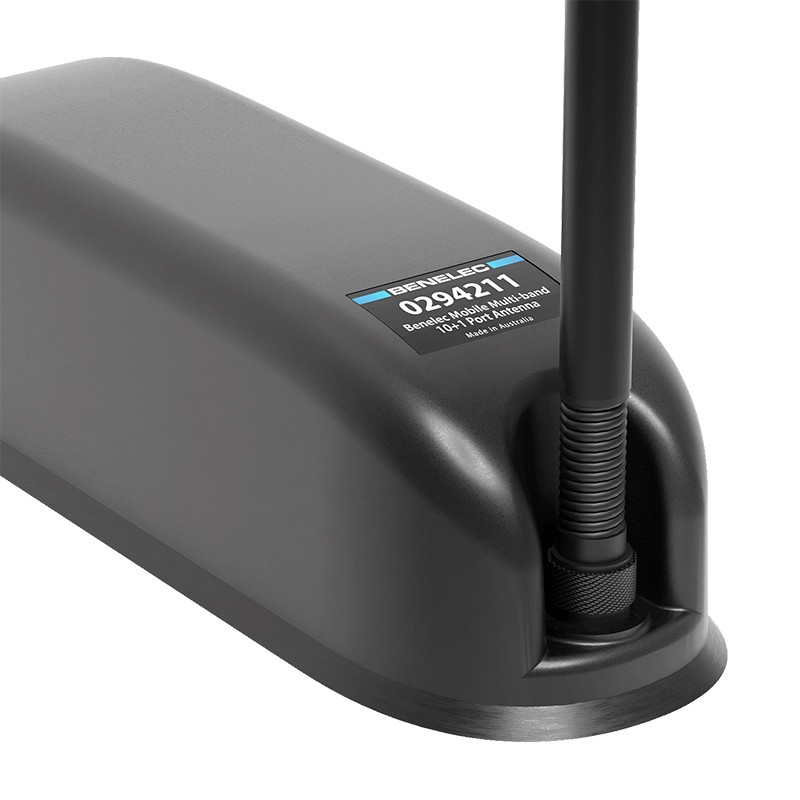

Benelec 10+1 Band Low Profile Antenna 4 x 5G, 4 x Wi-Fi, 2 x GNSS + N Socket LMR/Mesh Antenna
Benelec’s 0294211 Multi-band roof-mounted mobile multiband antenna is built for Public Safety applications. This antenna includes multiple 5G, Dual-Band Wi-Fi 2.4/5.8GHz, and GNSS Antenna capability. The 0294211 additionally provides an N socket port suitable for a range of optional antennas including our patented dual-band LMR, VHF and UHF antenna combined or a range of Mesh antennas in L, C or S band within a multiband solution.
- Description
- Specifications
Description

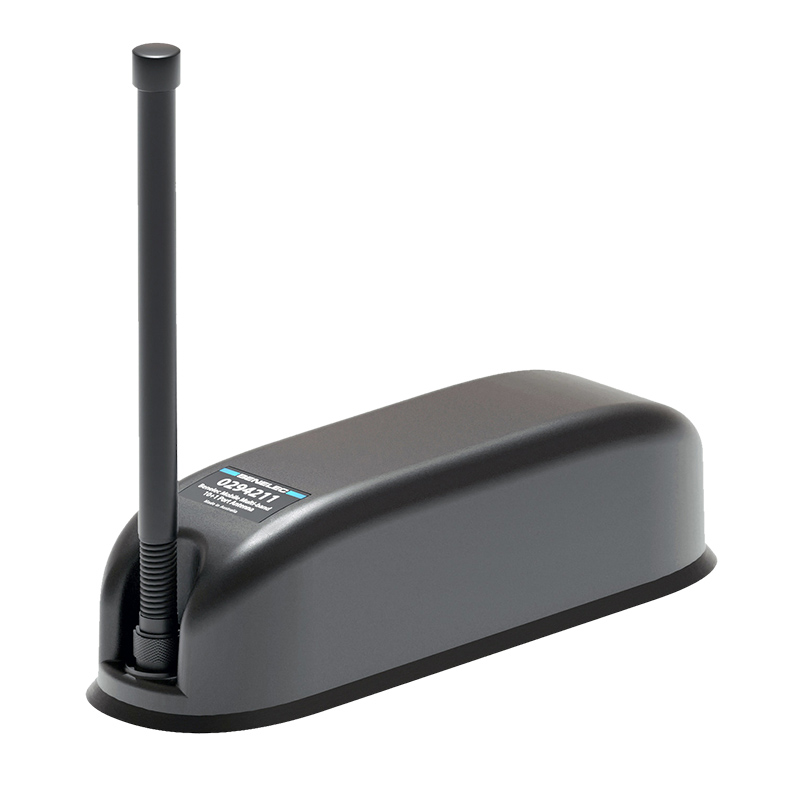

Low Profile Multiband Antenna | 10+1 Port
Benelec’s 0294211 Multi-band roof-mounted mobile antenna is built for Public Safety applications. This antenna includes multiple 5G, Dual-Band Wi-Fi 2.4/5.8GHz, and GNSS Antenna capability. The 0294211 additionally provides an N socket port suitable for a range of optional antennas including our patented dual-band LMR, VHF and UHF antenna combined or a range of Mesh antennas in L, C or S band within a multiband solution. It is a practical, easy-to-install antenna option for modern MiMo requirements with up to 12 bands on 11 ports as used for Public Safety Mobile applications.
FEATURES
- 4×4 MiMo 5G Antenna 4 ports (617–960MHz & 1.71 – 7.2 GHz)
- 4×4 MiMo Wi-Fi Antenna 4 ports (2.4–2.5 GHz & 4.7 – 7.2 GHz)
- 2 x GNSS Active Antenna for GPS L1, Glonass, Beidou & Galileo
- 1 x LMR VHF/UHF Band Antenna (Option) or Mesh Antenna
- Flexible band configurations (e.g. 2 x 5G or 2 x Wi-Fi instead)
- No diplexer required
- Full hemispherical coverage for the GNSS bands
- Built-in high gain, low noise amplifier
- GNSS Right-Hand Circular Polarisation
- 5 – 3.6 VDC for GNSS supply via SMAp Connector
- All bands ground independent other than the LMR antenna
WARRANTY
3 years (Please refer to Benelec Terms & Conditions)

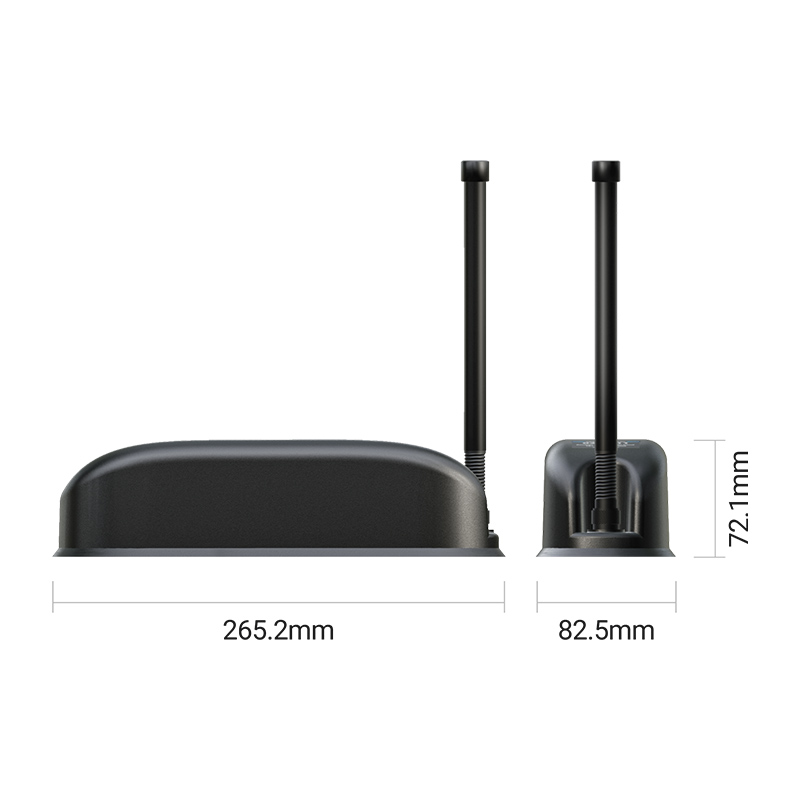

| Materials | High impact resistant U.V STABLE (ASA) |
| Installation Torque | 4 +/- 0.5 Nm |
| Colour | Black |
| Dimensions | Approx. 75 (W) x 258 (L) x 70 (H) mm (excluding gasket) |
| Max. Roof Thickness | 10 mm |
| GNSS
BeiDou/(GPS/QZSS |
Gain 28dBi including cable and filter losses.
Polarisation RHCP Noise figure 1.8 dB @2.7 V Out of band isolation >43 dB ESD 6 Kv |
| GNSS Voltage | 1.5-3.6 VDC |
| Mounting | 18.5 mm diameter hole Conformal neoprene gasket allows for Max roof curvature: 3.0 mm (on 270 mm) |
| Weight | 0.35 kgs |
| Operating Temp. Range | -50°C to +75°C |
| Water Resistance | IP67 |
| Terminations
|
SMA Plug for all lengths:
Dual GPS & GNSS: 120mm x 2 Flex RG405 |
| Frequency | 4 x 5G Ports: 617 – 960 MHz, 1710 – 7200 MHz
4 x WIFI Ports: 2400 – 2500 MHz, 4700 – 7200 MHz 2 x GNSS Ports: 1559 – 1609 MHz (GPS L1, Glonass, Beidou and Galileo) 1 x VHF/UHF Port: 140-165MHz, 400-500MHz |
| Antenna Type | Mobile multi band Roof Panel mounted Antenna |
| Polarisation | Vertical |
| Impedance | 50 Ω |
| Gain (peak) | 5G 4dBi (617 – 960 MHz) 5G 7dBi (1710 – 7200 MHz) Wi-Fi 6 dBi (2.4 GHz & 5.8 GHz) |
| Port Isolation
|
(With 3m 05603 RG58LL) diagonally opposed ports recommended for best decorrelation in 5G and Wi-Fi.
>=15.0 dB :617 – 2500MHz >=25.0 dB :3000-7200MHz |
| Whip Connection | N socket |
| Correlation Coefficient | 617 – 700 MHz =0.1 700 – 960 MHz =0.08 1710 – 7200 MHz 0.04 |
| VSWR 5G
VSWR Wi-Fi |
< 2.0:1 for (617MHz -7.2 GHz)
<2.0:1 for (2.1 -2.7 GHz) – (4.7-7.2 GHz) |
| Max. Input Power | 10 W for 5G and WIFI 25 W for PMR whip |
| Optional +1 Antennas | 024702N Dual Band VHF & UHF
024365N UWB 0.38-7.2GHz 029310N L Band 5.0dBi 1.2-1.5GHz 029321N S Band 6.0dBi 2.2-2.5GHz 029351N C Band 6.0dBi 4.7-5.0GHz 029352N C Band 9.0dBi 4.7-5.0GHz |
