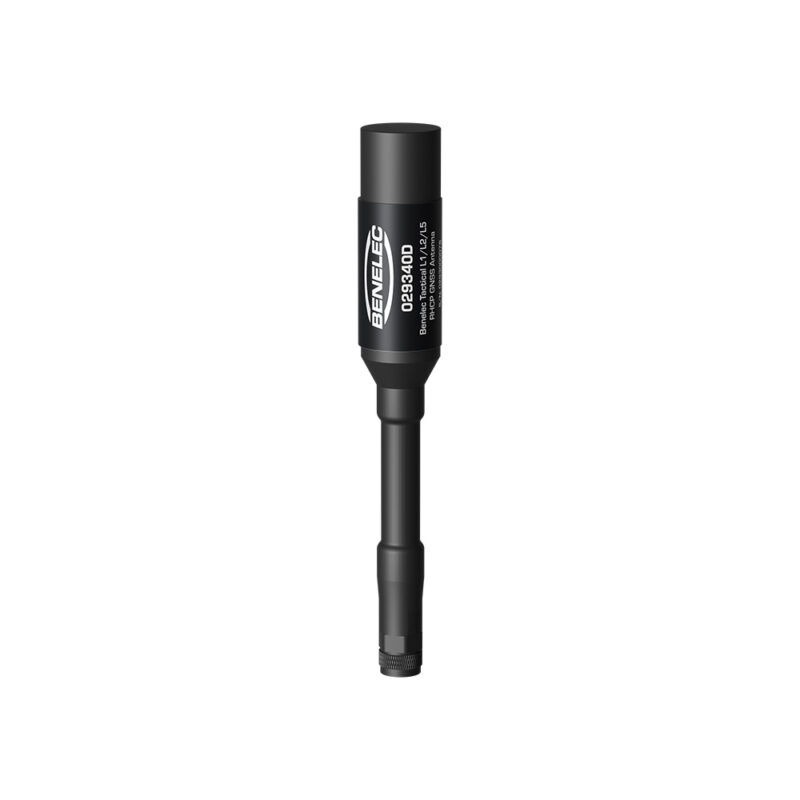

Benelec Tactical L1/L2/L5 RHC GNSS Active 35dB FlexNek™ Antenna 1.15-1.278GHz/1.55-1.61GHz, TNC Plug
AUD Includes GST
The 029340D is a compact, wide-angle RHCP GNSS antenna built for RTK geolocation in demanding field operations. Its quadrifilar radiator maintains true circular polarisation across a broad angle, delivering strong low-elevation reception and 360° azimuth coverage for reliable fixes in challenging environments. The slimline form factor enables discreet mounting on dismounted soldier equipment, packs, and fixed sites. The housing is IP67 sealed for year-round outdoor use. Supporting multi-constellation, multi-band GNSS (L1/L2/L5), the 029340D is ideal for tactical and survey-grade deployments where performance, durability, and low visual signature matter.
No Datasheet Found. Please submit a request below.
[shipping_message]
We’re currently enabling online payment and shipping.
Shipping available:
- Description
- Specifications
Description
Benelec Tactical L1/L2/L5 RHCP GNSS FlexNek™ Antenna
1150 – 1278 MHz & 1550 – 1610 MHz | TNC Plug
FEATURES
- Matt black fiberglass radome
- Fixed TNC type plug connector
- FlexNek™ and connector matt black
- Multi-band filtering
- Slim and compact design
- Durable
APPLICATION
- Military geolocation, navigation, and timing (RTK/precise timing) across L1/L2/L5
- Survey & mapping kits, UGS, and base stations where a low-profile antenna is preferred
WARRANTY
3-Year Warranty
(Refer to Benelec Terms and Conditions)
| Frequency | 1150-1278 MHz (L1+L5 ) & 1550-1610 MHz (L2) |
| Supported Constellations |
GPS L1/L2/L5; BeiDou B1/B2/B3; GLONASS G1/G2; Galileo E1/E5b |
| LNA Gain | 35dB +/- 3dB |
| Peak Gain | ≥2.0dBi |
| Output VSWR | ≤ 2.0:1 max. |
| Impedance | 50 Ω |
| Polarisation | RHCP |
| Architecture | Quadrifilar Helix |
| LNA Noise Figure |
≤ 1.5dB |
| Axial Ratio @ Zenith | ≤ 1.5dB |
| Azimuth Coverage | 360° |
| Supply Voltage | 3 to 16 Volts |
| Working Current | ≤ 45mA |
| ESD Protection | 15kV (discharge) |
| Termination | TNC Plug (fixed) |
| FlexNek™ Bend Angle | 90 Degrees |
| IP Rating | 67 |
| Operating Temp. | -40℃～＋85℃ |
| Storage Temp | -45℃～＋85℃ |
| Humidity | 95% Non-condensing |
| Length | 186 mm |
| Diameter | 27 mm (Max.) |
| Net Weight | 100 g |
