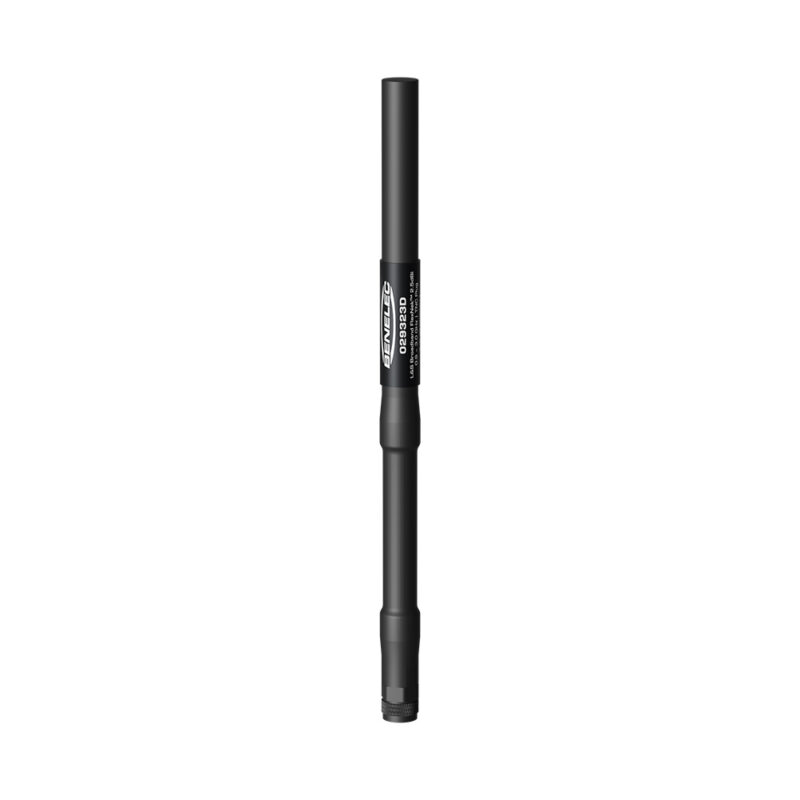

Benelec Tactical L & S Band 2.3/5dBi FlexNek™ Antenna 0.9-3.0GHz, TNC Plug
AUD Includes GST
The 029323D is a high-performance antenna designed for use in the UWB (Ultra-Wide Bandwidth) military band. Optimised for a wide range of wireless systems, it supports point-to-point, multi-point, and mesh network configurations. Typical applications include EW, MANET, and video surveillance transmitters. The antenna’s stable radiation pattern and unique radiator design ensure consistent VSWR performance across the bands of interest. Its compact slimline form enables discreet installation in both indoor and outdoor environments.
No Datasheet Found. Please submit a request below.
[shipping_message]
We’re currently enabling online payment and shipping.
Shipping available:
- Description
- Specifications
Description
Benelec Tactical L&S Band 2.3/5dBi FlexNek™ Antenna
0.9-3.0GHz | TNC Plug
FEATURES
- Matte black fiberglass radome
- Fixed TNC type plug connector
- FlexNek™ and connector matte black
- Slim and compact design
- Robust and durable
- Designed and manufactured in Australia
APPLICATION
- Military MANET (Mobile Ad Hoc Network)
- EW, point, multipoint and mesh applications
- Video surveillance transmission systems
WARRANTY
3-Year Warranty
(Refer to Benelec Terms and Conditions)
| Frequency | 0.9-3.0GHz |
| Gain | +2.3 to +5.0 dBi See realized gain response next page |
| VSWR | <2.5:1 |
| Impedance | 50 Ω |
| Polarisation | Vertical |
| Radiation | Omni-directional |
| Horizontal Beamwidth (AZ) | 360° +/- 2 dB Az deviation |
| Vertical Beamwidth (EL) | 70° – 100° |
| Termination | TNC Plug (fixed) |
| RF Power | 50 W |

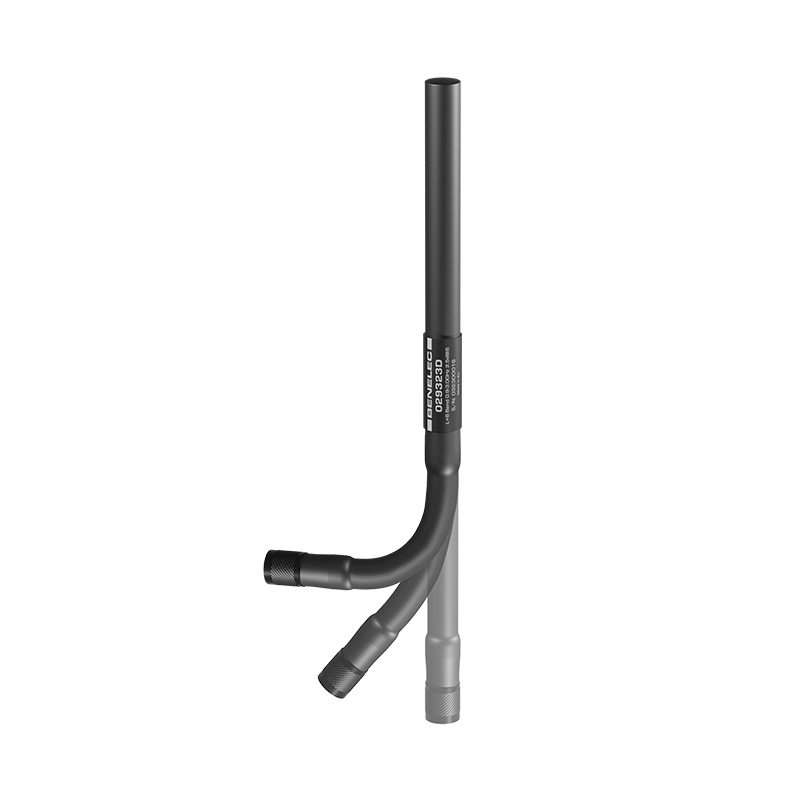

| FlexNek™️ Bend Angle | 90° |
| IP Rating | IP67 |
| Temp Rating | -40° to 85° C |
| Length | 260 mm Max. |
| Diameter | 14.5 mm Max. |
| Weight | 95 g |
| Gross Weight | 105 g |
