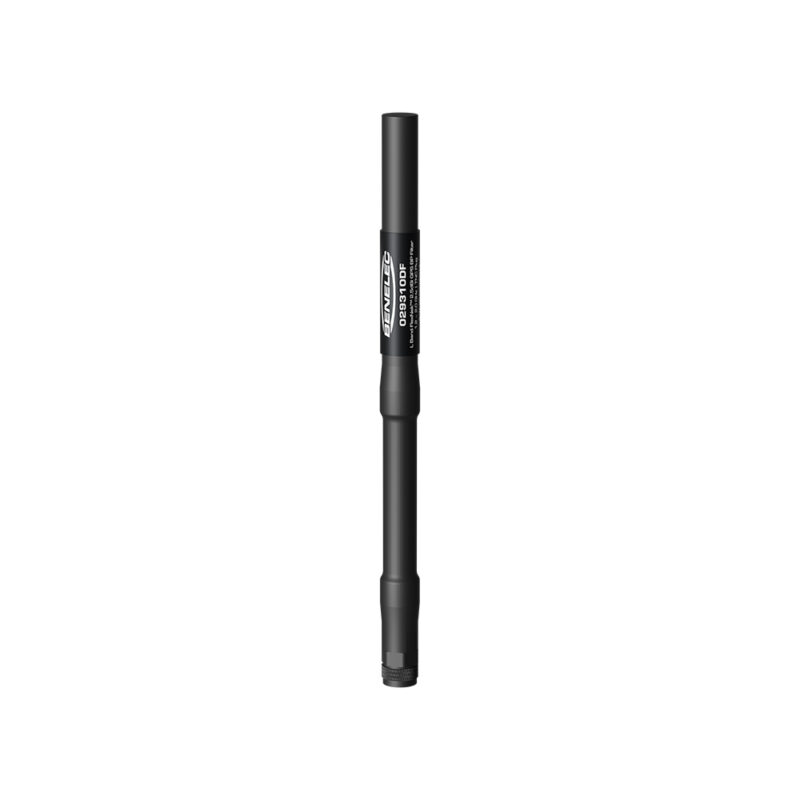

Benelec Tactical L Band 2.5dBi GNSS Bandpass Filtered FlexNek™ Antenna 1.2-2.0GHz, TNC Plug
AUD Includes GST
The 029310DF is a high-performance antenna designed for operation across the 1.2–2.0 GHz military L-band and optimised for a wide range of wireless systems. It supports point-to-point, multi-point, and mesh network configurations, making it suitable for applications such as MANET systems and video surveillance transmitters. Its slimline form factor enables discreet installation in both indoor and outdoor environments. The radiation pattern delivers stable horizon-level performance across the entire operating band, ensuring consistent connectivity and reliable signal quality.
No Datasheet Found. Please submit a request below.
[shipping_message]
We’re currently enabling online payment and shipping.
Shipping available:
- Description
- Specifications
Description
Benelec Tactical L Band 2.5dBi FlexNek™ Antenna
1.2 – 2.0 GHz with GPS BP Filter | TNC Plug
FEATURES
- Matt black fibreglass radome
- Fixed TNC type plug connector
- FlexNek™ and connector matt black
- Slim and compact design
- Robust and durable
- Designed and manufactured in Australia
APPLICATION
- Military MANET and link applications
- Video Surveillance transmitters
WARRANTY
3-Year Warranty
(Refer to Benelec Terms and Conditions)
| Frequency | 1.2 – 2.0 GHz |
| Gain | 2.5 dBi |
| VSWR | < 2:1 |
| Impedance | 50 Ω |
| Polarisation | Vertical |
| Radiation | Omni-directional |
| Horizontal Beamwidth (AZ) | 360° |
| Vertical Beamwidth (EL) | 66° |
| Termination | TNC Plug (fixed) |
| RF Power | 20 W @ 25 deg C |
| FlexNek™️ Bend Angle | 90° |
| IP Rating | IP67 |
| Temp Rating | -40° to 85° C |
| Length | 235 mm |
| Diameter | 14.5 mm |
| Net Weight | 90 g |
