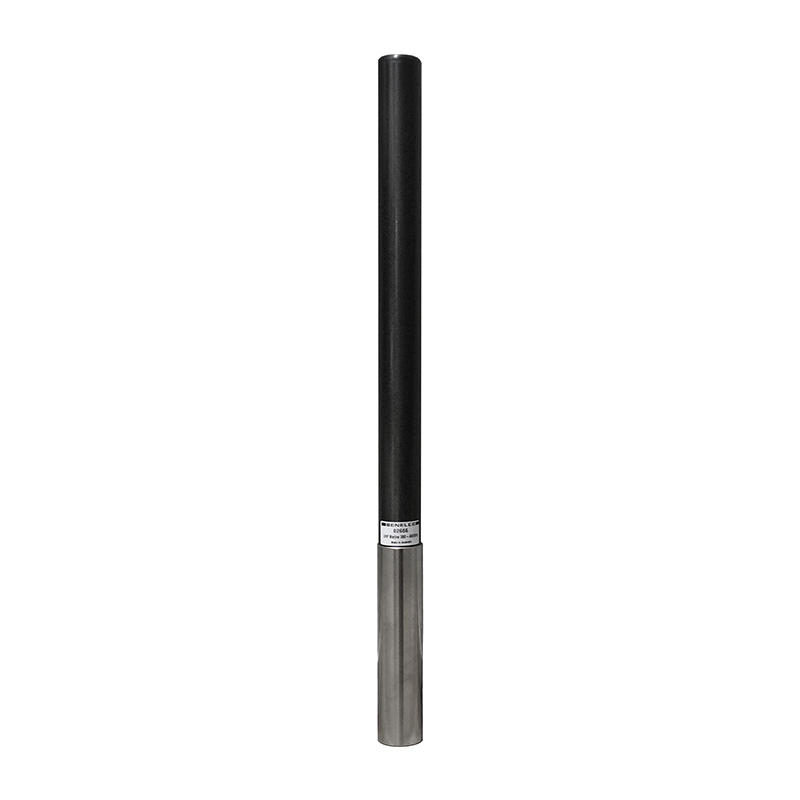

Benelec UHF Broadband Marine GPI Antenna 380-490MHz
The 02666 is a broadband UHF Marine antenna. It covers the entire band 380 – 490 MHz It comes with a black heavy-duty radome and has a short mounting tube allowing for pole mounting. It is also fitted with a female thread for mounting to a variety of marine base mounts.
[shipping_message]
- Description
- Specifications
Description
Broadband UHF Marine Antenna | 380-490MHz | GPI
The 02666 is a broadband UHF Marine antenna. It covers the entire band 380 – 490 MHz It comes with a black heavy-duty radome and has a short mounting tube allowing for pole mounting. It is also fitted with a female thread for mounting to a variety of marine base mounts.
APPLICATIONS
UHF Marine communications
FEATURES
- Stainless Steel Fittings
- Broad Bandwidth
- Black HD Radome
- Deck or Pole Mounting
WARRANTY
3 years (Please refer to Benelec Terms & Conditions)
| Frequency | 380 – 490 MHz |
| Gain | Unity (~ 3 dBi) |
| VSWR | < 2.0:1 |
| Impedance | 50 Ω |
| Polarisation | Vertical |
| Termination | 1.25 m RG58 Side Tube Exit, Nf |
| Power Rating | 80 Watts |
| H Plane 3 dB Beamwidth | 360 Deg |
| Lightning Protection | DC Grounded |
| Mounting Tube | 38 mm ø x 162 mm Long |
| Base Materials | Stainless Steel |
| Antenna Length | 580 mm |
| Antenna Weight | 2 kg |
| Mounting | 1” Marine Female or Clamp |
