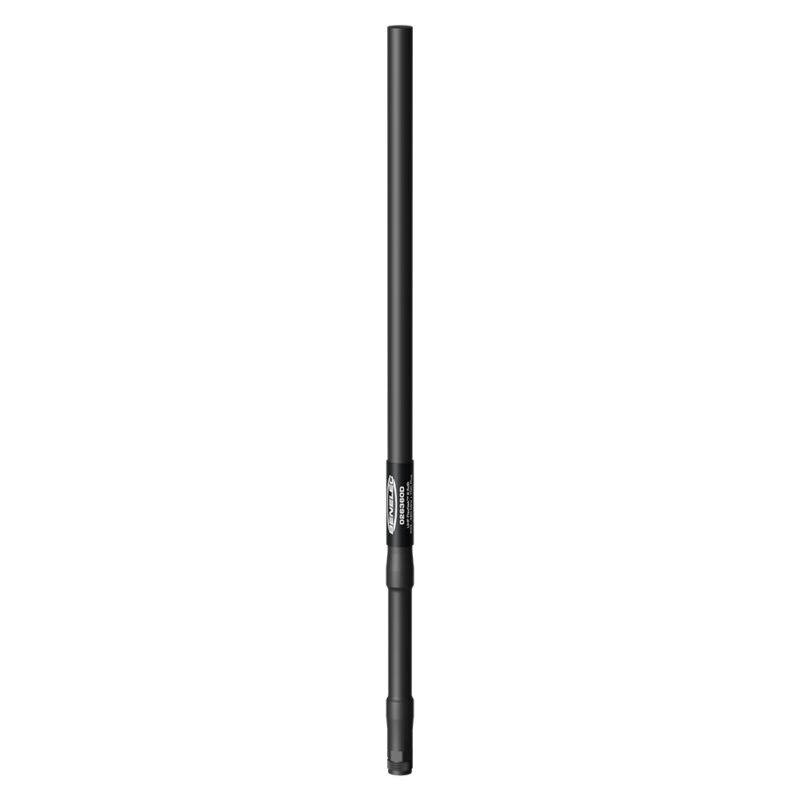

Benelec Tactical UHF 2.5dBi FlexNek™ Antenna 380-520MHz, TNC Plug
AUD Includes GST
The 026360D is a high-performance antenna designed for operation across the 380 – 520 MHz band. Optimised for a wide range of wireless systems, it supports point-to-point, multi-point, and mesh network configurations. Typical applications include military manpack radios, with its slim, compact profile making it well suited to discreet mounting in both indoor and outdoor environments. Its unique radiator design delivers consistently low VSWR across the operational band.
No Datasheet Found. Please submit a request below.
[shipping_message]
We’re currently enabling online payment and shipping.
Shipping available:
- Description
- Specifications
Description
Benelec Tactical UHF 2.5dBi FlexNek™ Antenna
380 – 520 MHz | TNC Plug
FEATURES
- Matte black fiberglass radome
- Fixed TNC type plug connector
- FlexNek™ and connector matte black
- Slim and compact design
- Robust and durable
- Factory tuned; requires no further tuning
- Designed and manufactured in Australia
APPLICATION
Military applications.
WARRANTY
3-Year Warranty
(Refer to Benelec Terms and Conditions)
| Frequency | 380 – 520 MHz |
| Gain | 2.5 dBi |
| VSWR | < 2.0:1 |
| Impedance | 50 Ω |
| Polarisation | Vertical |
| Radiation | Omni-directional |
| Power | 15 W (RMS) |
| Horizontal Beamwidth (AZ) | 360° +/- 2 dB Az deviation |
| Vertical Beamwidth (EL) | 70° – 90° |
| Termination | TNC plug (fixed) |
| Length | 442 mm |
| Diameter | 14.5 mm |
| Net Weight | 120 g |
