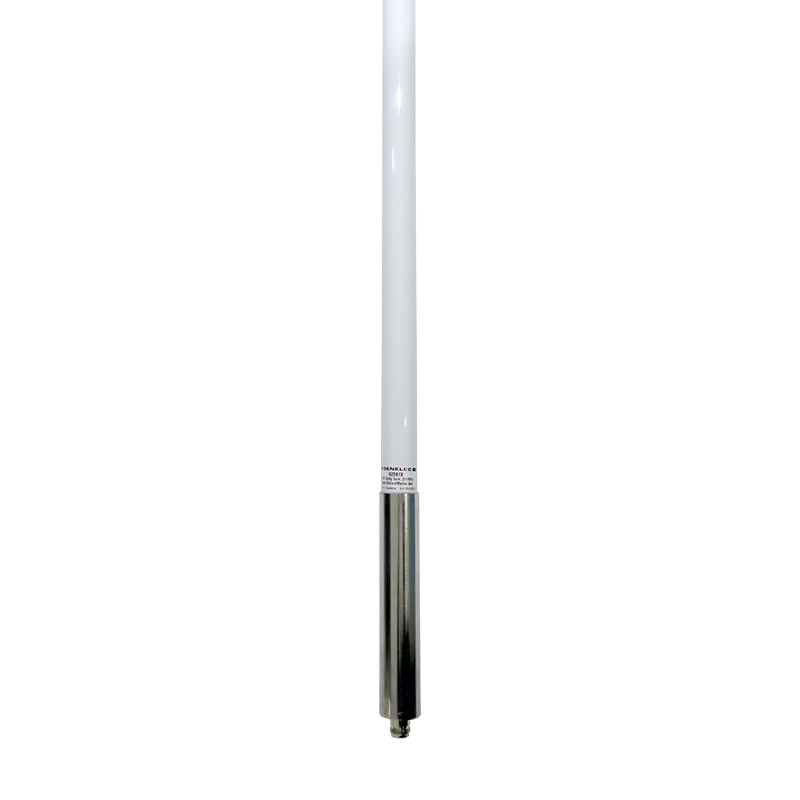

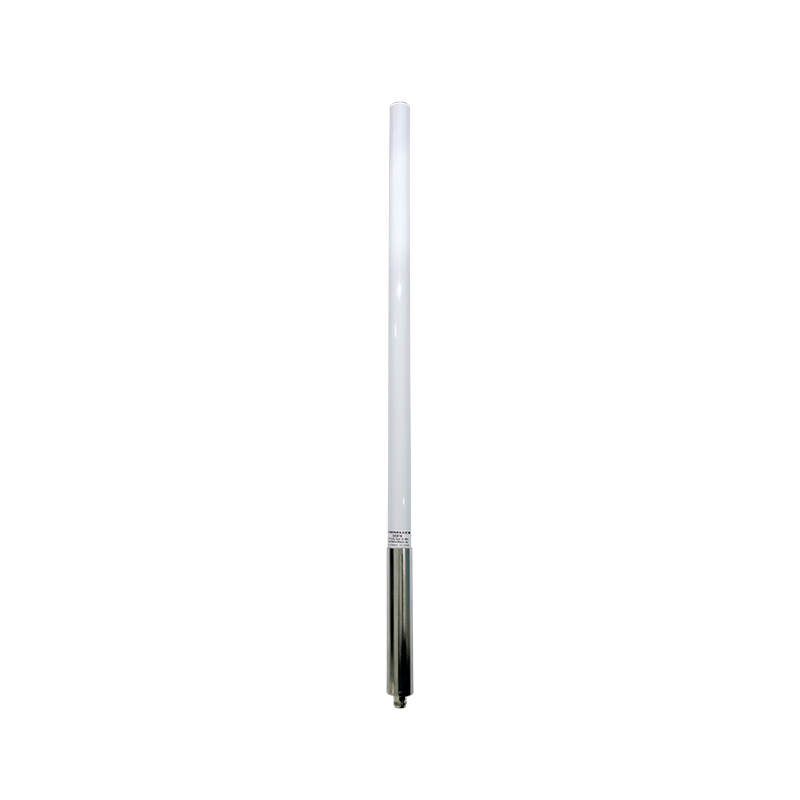

Benelec VHF Unity Gain Base Station/Marine Antenna 291MHz
The 02591X is a small compact VHF marine antenna for use in the VHF band centred on 291MHz. The antenna has a white fiberglass radome with all stainless-steel fitting. It is unity gain, and offers a wide angle of radiation, ideal for in close and medium distant communications as well as unstable platform (at sea).
[shipping_message]
- Description
- Additional information
- Specifications
Description
VHF Marine Antenna Base Station Unity Gain 291MHz
The 02591X is a small compact VHF marine antenna for use in the VHF band centred on 291MHz. The antenna has a white fiberglass radome with all stainless-steel fitting. It is unity gain, and offers a wide angle of radiation, ideal for in close and medium distant communications as well as unstable platform (at sea).
APPLICATIONS
Base Station / Marine Environments
FEATURES
- All stainless-steel fittings
- Rugged construction
- Fibreglass Radome
- DC Grounding
WARRANTY
3 years (Please refer to Benelec Terms & Conditions)
Additional information
| Weight | 1070 g |
|---|---|
| Dimensions | 900 × 50 × 50 mm |
| Frequency | Centred on 291MHz |
| Gain | 0dBd ~3dBi |
| Power Rating | 100 watts |
| VSWR | <1.5:1 10MHz. <2.0:1Â 20MHz |
| Impedance | 50 Ohm nominal |
| Termination | N type fixed female |
| Mounting | 32mm Tube |
| Base Material | S/Steel, fiberglass, Copper |
| IP Rating | IP65 |
| Degree Rating | -10 to +50 Deg C |
| Antenna Length | 850mm (including connector) |
| Antenna width | 32mm. |
| Antenna weight | 720g. |
| Windloading 160KPH | 3.27kg 32.06N |
