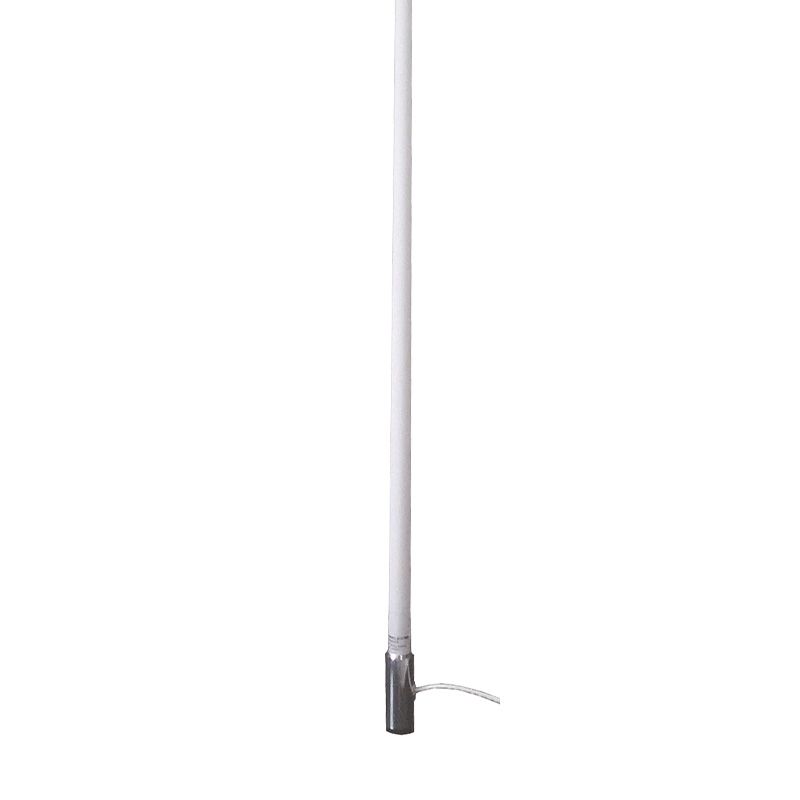

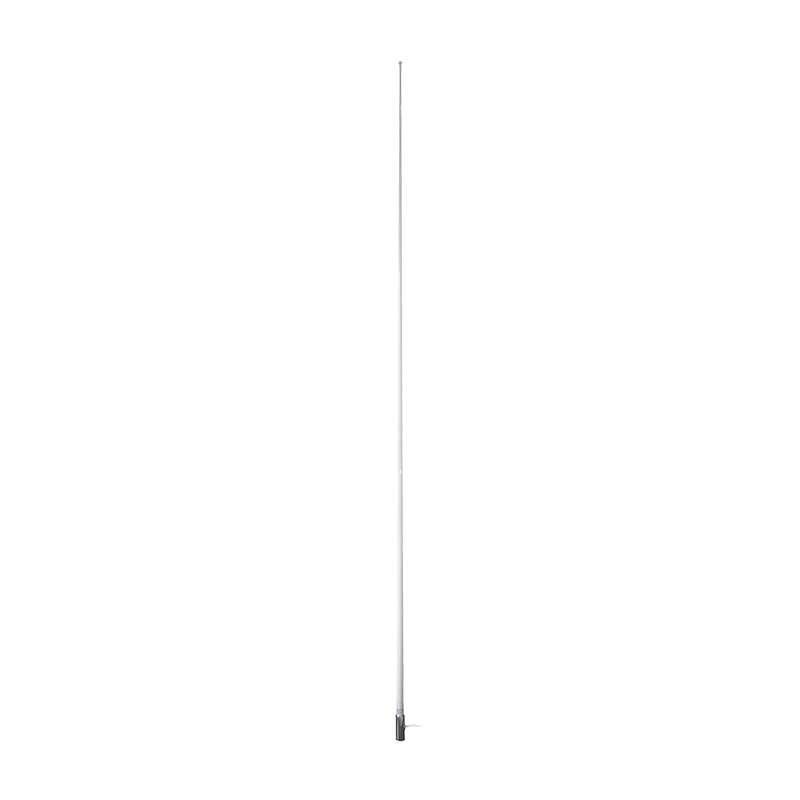

Benelec 2.4m (8′) Marine VHF Deck Mount Antenna
The 02525 is a VHF marine antenna for use in the VHF 156-162MHz marine band (including AIS1 and AIS2 Channels). The antenna is housed in a white, smooth and rugged fiberglass radome, and comes complete with five metres of low loss cable. The antenna comes with a Male UHF Plug connector allowing connection to the Transceiver. The antenna can be used with a range of alternative optional mountings.
[shipping_message]
- Description
- Specifications
Description
VHF Marine Antenna | Deck Mount | 2.4m
APPLICATIONS
Marine VHF
FEATURES
- Smooth white fibreglass radome
- 5 meters low loss cable
- Chromed Brass fittings
- Matched adjustable bases (bases optional extra)Â White cable
WARRANTY
3 years (Please refer to Benelec Terms & Conditions)
| Frequency | 156 – 162 MHz <1.6:1 |
| Gain | Unity |
| Impedance | 50 Ohms nominal |
| Polarisation | Vertical |
| Radiation | Omni directional |
| Termination | Male UHF plug – to be fitted by the customer |
| Base Materials | Fiberglass and Chromed Brass |
| Antenna Length (L) | 2380 mm |
