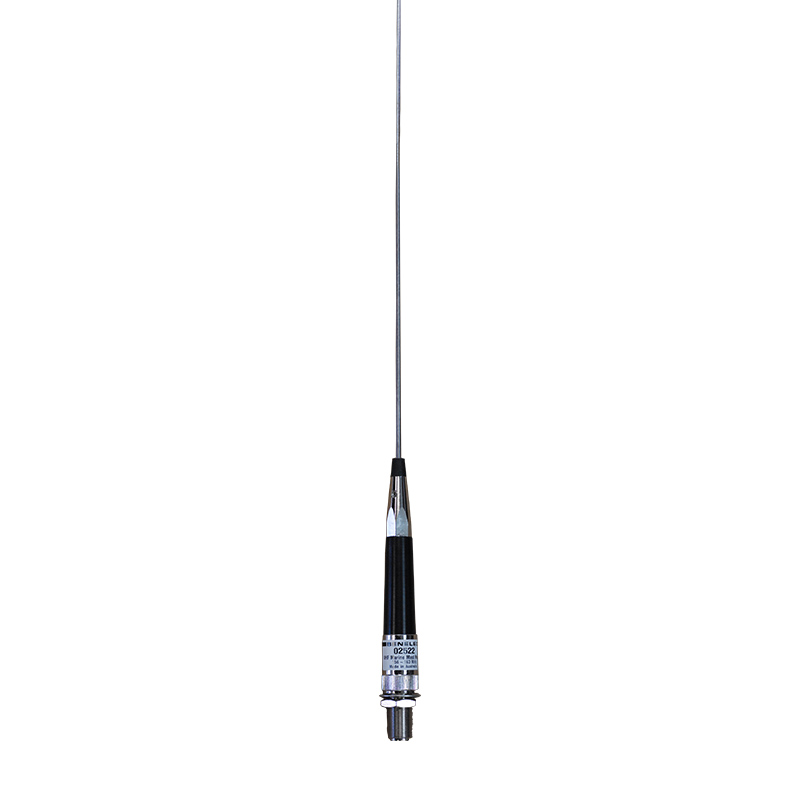

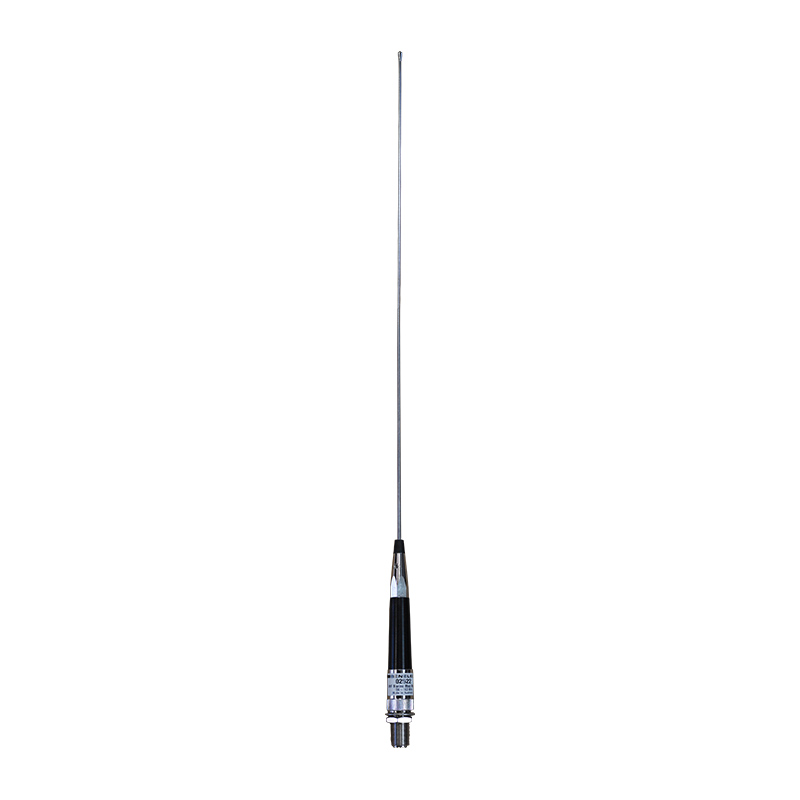

Benelec Marine VHF 3dBi 1/2 Wave Mast Mount Whip Antenna, Stainless Steel
The 02522 is a Unity Gain, VHF Marine Antenna covering the full VHF Marine Radio Band (including AIS1 and AIS2 Channels). The 02522 antenna offers a stable radiation pattern with negligible horizontal pattern tilt across the whole band. Its robust construction ensures excellent longevity and performance. Its compact size makes it ideally suited to mast mounting applications.
[shipping_message]
- Description
- Specifications
Description
VHF Marine Antenna – Half Wave Mast Mount Whip | 3dBi | Stainless Steel
The 02522 antenna offers a stable radiation pattern with negligible horizontal pattern tilt across the whole band. Its robust construction ensures excellent longevity and performance.
APPLICATIONS
Mast or Cabin mounting. Ideally suited to situations where space is at a premium
CONSTRUCTION
Removable Stainless Steel radiating section. Matching section is construction in high impact Delrin material. UHF socket at base of antenna.
WARRANTY
3 years (Please refer to Benelec Terms & Conditions)
| Frequency | 156 – 162 MHz |
| Gain | 0 dB |
| Impedance | 50 Ω |
| Vertical Beamwidth | 80 Deg |
| Power | 25 W |
| Tuned Bandwidth | 6 MHz |
| Length | 960 mm |
| Weight | 250 g |
| Termination | UHF Female Socket |
| Construction | Stainless Steel/Delrin |
