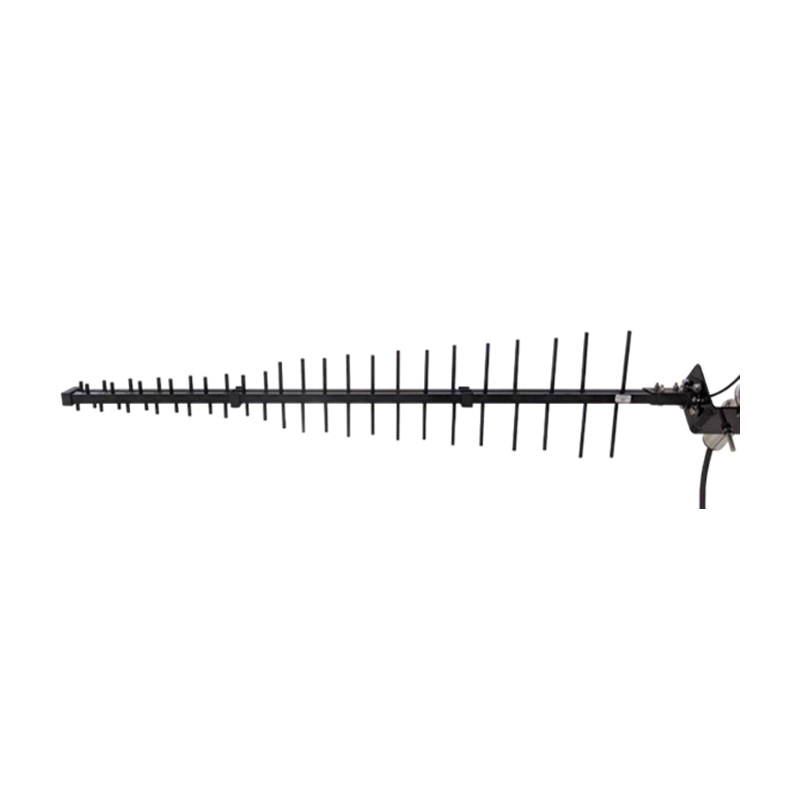

Benelec Cellular 5G 14dBi Directional Log Base Antenna, PIM Rated, 4.3-10 Socket
AUD Includes GST
The Benelec 02484E4 is a high-performance 5G cellular directional log base antenna, designed to deliver reliable coverage across both low-band (694–960 MHz) and mid-to-high band (1700–3700 MHz) frequencies. With dual-polarisation (H/V/±45°) and a gain of 13–14 dBi, this antenna provides excellent signal strength and improved throughput in demanding environments. Its wide beamwidth, high isolation, and superior front-to-back ratio ensure strong performance while minimising interference. Built from durable black anodised aluminium (6063T5), the antenna is lightweight yet rugged, making it suitable for pole-mounted installations in outdoor conditions. Engineered for long-term reliability, it operates in extreme temperatures from -30 °C to +70 °C and supports up to 50 W input power with low PIM performance (≤-153 dBc). Featuring a 4.3-10 female connector and compact dimensions, the 02484E4 is an ideal solution for cellular, LTE, and 5G network applications requiring directional, high-gain performance.
[shipping_message]
We’re currently enabling online payment and shipping.
Shipping available:
- Description
Description
Benelec Cellular 5G Directional Log Base Antenna 14dBi PIM Rated
The Benelec Cellular 5G 14dBi Directional Log Base Antenna is designed for reliable long-range signal reception. Its high gain and durable construction make it ideal for enhancing cellular and 5G network coverage.
APPLICATION
Ideal for 5G, LTE, and cellular network base stations requiring high-gain directional coverage
FEATURES
- Wide Frequency Range: Covers 694–960 MHz and 1700–3700 MHz bands
- High Gain: 13.0 dBi (694–960 MHz) and 14.0 dBi (1700–3700 MHz)
- Directional Performance: Horizontal beam width of 54° and vertical beam width of 47°
- PIM Rated: Passive Intermodulation ≤ -153 dBc for improved signal integrity
- Durable Construction: Made of black anodized aluminium (6063T5) with a 4.3-10 Female connector
WARRANTY
3 years (Please refer to Benelec Terms & Conditions)
