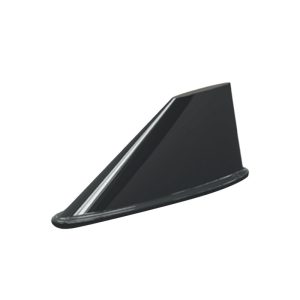

Benelec UxS MiMo Blade Antenna 1 x 5G / 1 x WiFi

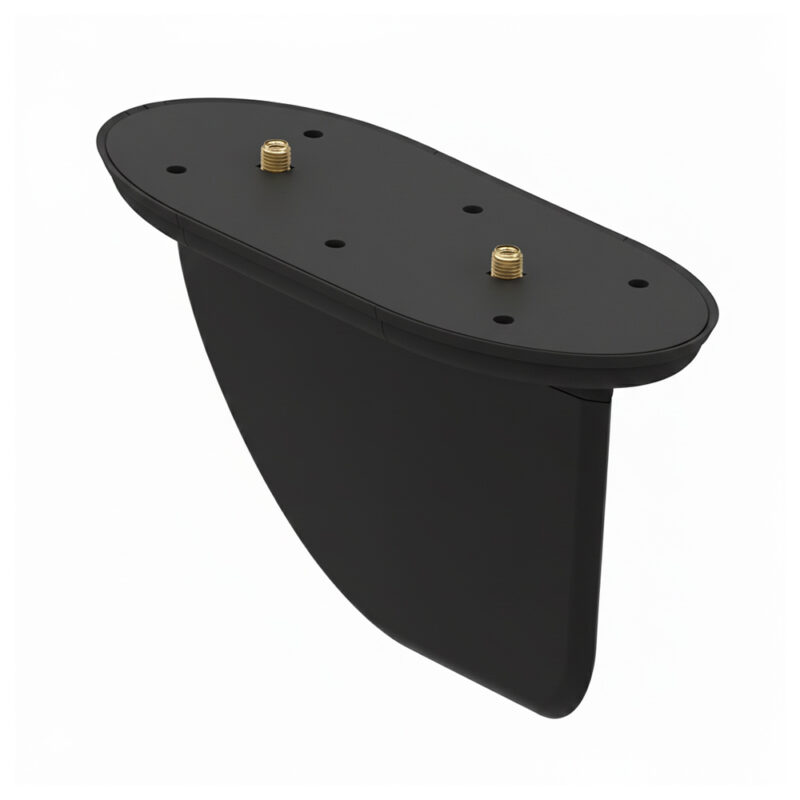

Benelec’s 02471 multi-band external mount UAV mobile antenna includes 5G and dual-band Wi-Fi 2.4/5.8GHz SMA connectors, bulkhead-mounted with a weather-seal gasket. It is designed specifically for high-speed UAV applications, featuring a streamlined, low-drag profile.
No Datasheet Found. Please submit a request below.
[shipping_message]
- Description
- Additional information
- Specifications
Description
FEATURES
- 1 x 5G antenna 4 ports (617–960 MHz & 1.71 – 7.2 GHz)
- 1 x Wi-Fi antenna 4 ports (2.1–2.5 GHz & 4.0 – 7.2 GHz)
- All bands ground independent.
- Factory tuned; no further tuning required
- Designed and manufactured in Australia
Additional information
| Weight | 400 g |
|---|---|
| Dimensions | 270 × 180 × 20 mm |
| Frequency | 1x 5G ports:
617 – 960 MHz, 1710 – 7200 MHz 1x Wi-Fi 2400 – 2500 MHz, 4700 – 7200 MHz
|
| Gain | 5G 4 dBi (617 – 960 MHz)
5G 7 dBi (1710 – 7200 MHz) Wi-Fi 6 dBi (2.4 GHz & 5.8 GHz) |
| VSWR 5G | < 2.0:1 for (617 MHz -7.2 GHz)
|
| VSWR Wi-Fi | < 2.0:1 for (2.1 -2.7 GHz) – (4.7-7.2 GHz) |
| Antenna Type | UAV 5G external mount blade antenna |
| Impedance | 50 Ω |
| Polarisation | Vertical |
| Port Isolation | 5G to WiFi <=-8dB |
| Power Rating | 10 W for 5G and Wi-Fi 25 W for PMR whip |
| Temperature Rating | -50 °C to +75 °C |
| Termination | 2 x SMA bulkhead mounted jack |
| Material | High impact resistant U.V stable (ASA) |
| Colour | Black |
| Mounting | M4 shake proof hardware |
| Installation Torque | 4 +/- 0.5 Nm |
| Max. Roof Thickness | 10 mm |
| Dimensions | Approx. 40(W) x 165 (L) x 70 (H) mm (excluding gasket) |
| Ingress Protection | IP67 |
| Net Weight | 0.35 kg |
