Benelec Cellular 5G Base Dipole Antenna
The 024584 is a compact, unity gain 5G dipole antenna suited for use in bands 690-960MHz, 1710-2700MHz & 3500-3700MHz. It comes standard with 3m (10 ft) of low loss cable terminating to a SMA male connector and is suited for mounting onto a wall bracket. This antenna can be used inside or outside, in fixed applications. The 024584 is decoupled from the feed cable and offers a clean radiation pattern at all frequencies.
[shipping_message]
- Description
- Specifications
Description
Benelec Cellular 5G Dipole Antenna
APPLICATIONS
Fixed solutions suited for use in the 5G cellular bands:
617 – 960 MHz, 1710 – 2700 MHz & 3500 – 6000 MHz
FEATURES
- Cellular 5G (compatible with 4G)
- Economically priced
- Suitable for both indoor and outdoor
- Includes a 3m (10 ft) low loss cable terminated with SMA Plug
- Compact, durable and reliable design
- Ground plane independent
- Can be mounted vertically or horizontally

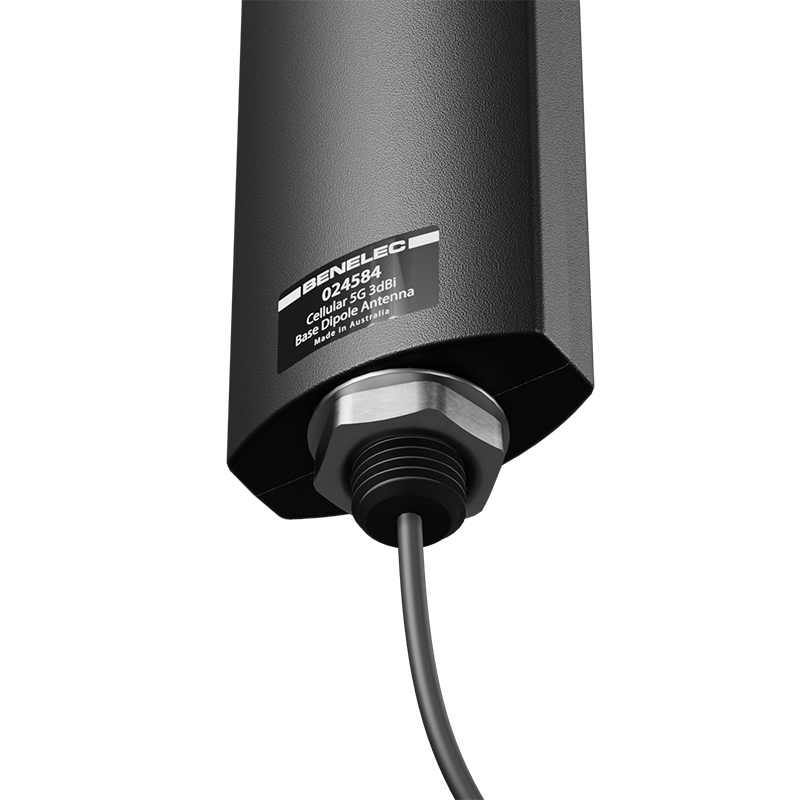

- Equipped with a 16 mm (0.6”) BSW mounting stud

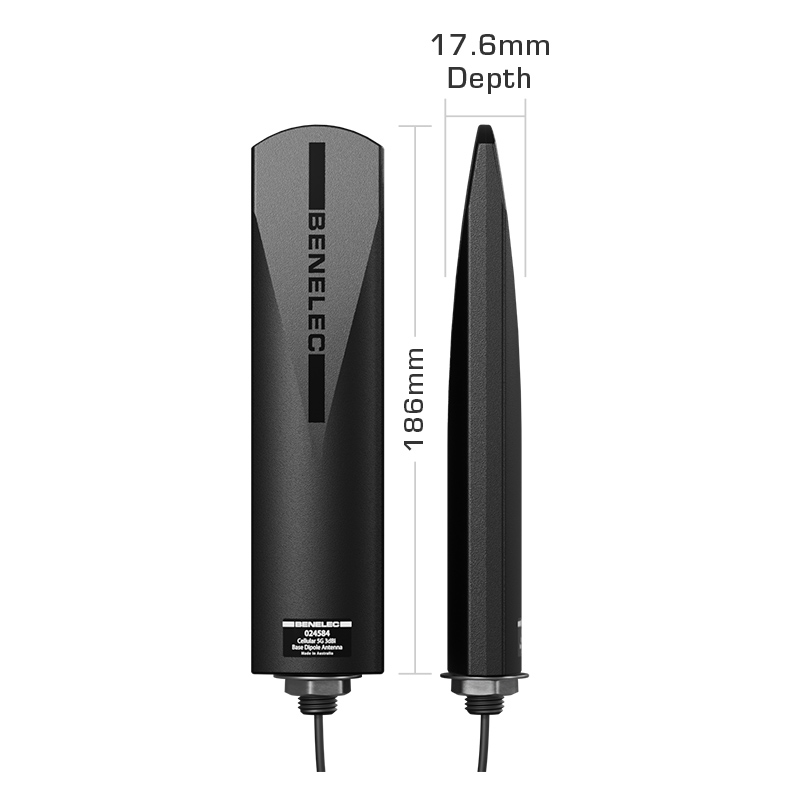

- Depth 17.6 mm (0.7”)
WARRANTY
3 Years (Please refer to Benelec Terms & Conditions)
| Frequency | @ 617 – 960 MHz, Tuned BW 343 MHz
@ 1710 – 2700 MHz, Tuned BW 990 MHz @ 3500 – 6000 MHz, Tuned BW 2500 MHz |
| VSWR | <= 2.0:1 in band |
| Gain | 1.8 – 4.7 dBi |
| Impedance | 50 Ω nominal |
| Radiation Pattern | Omni directional |
| E-Plane 3dB Beamwidth | 80 ° |
| Projected Area | 0.008370 m2 (0.027 ft2) |
| Power | 5 Watts |
| Length | 203 mm (7.9”) |
| Weight | 205 g (7 oz) |
| Termination | 3m (10 ft) Low Loss Cable, SMA Plug |
| Wind Loading @160 KPH | 1.85 kg (4 lb) |
