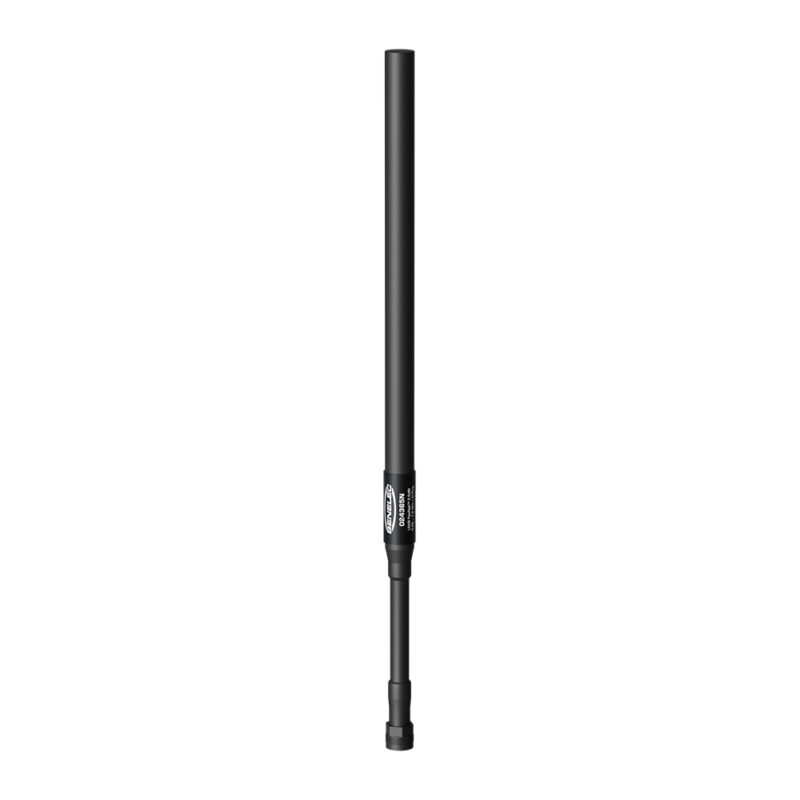

Benelec Tactical UWB 2.5dBi FlexNek™ Antenna 0.38-7.2GHz, N Plug
AUD Includes GST
The 024365N Tactical UWB FlexNek™ Antenna is a wideband, compact antenna engineered for use in the ultra-wideband military spectrum (0.38–7.2 GHz). With omni-directional radiation and stable vertical polarisation, it is optimised for MANET, EW, video surveillance, and other tactical communications in point-to-point, multi-point, and mesh network deployments. The antenna provides consistent performance across its operating band, with low VSWR ensuring efficient signal handling.
Its slim matte black design incorporates the FlexNek™ technology, providing enhanced durability and impact protection while remaining lightweight and discreet. Factory-tuned and requiring no additional adjustment, the 024365N is easily deployed in both fixed and mobile applications. With a fixed N-type plug connector and robust fiberglass radome, it delivers rugged reliability in the most demanding environments.
No Datasheet Found. Please submit a request below.
[shipping_message]
We’re currently enabling online payment and shipping.
Shipping available:
- Description
- Specifications
Description
Benelec Tactical UWB 2.5dBi FlexNek™ Antenna
0.38-7.2GHz | N Plug
FEATURES
- Matte black fiberglass radome
- Fixed N type plug connector
- FlexNek™ and connector matte black
- Slim and compact design
- Robust and durable
- Factory tuned; no further tuning required
- Designed and manufactured in Australia
APPLICATION
Military MANET and link applications.
WARRANTY
3-Year Warranty
(Refer to Benelec Terms and Conditions)
| Frequency | 0.38 – 7.2 GHz |
| Gain | See realised gain response next page |
| VSWR | < 2.2:1 |
| Impedance | 50 Ω |
| Horizontal Beamwidth (AZ) | 360° ± 2 dB Az deviation at main beam max |
| Vertical Beamwidth (EL) | 70° – 100° |
| Polarisation | Vertical |
| Radiation | Omni-directional |
| Termination | N plug (fixed) |
| Power | 15 W (RMS) |
| Length | 490 mm |
| Diameter | 20.5 mm (max) |
| Net Weight | 140 g |
