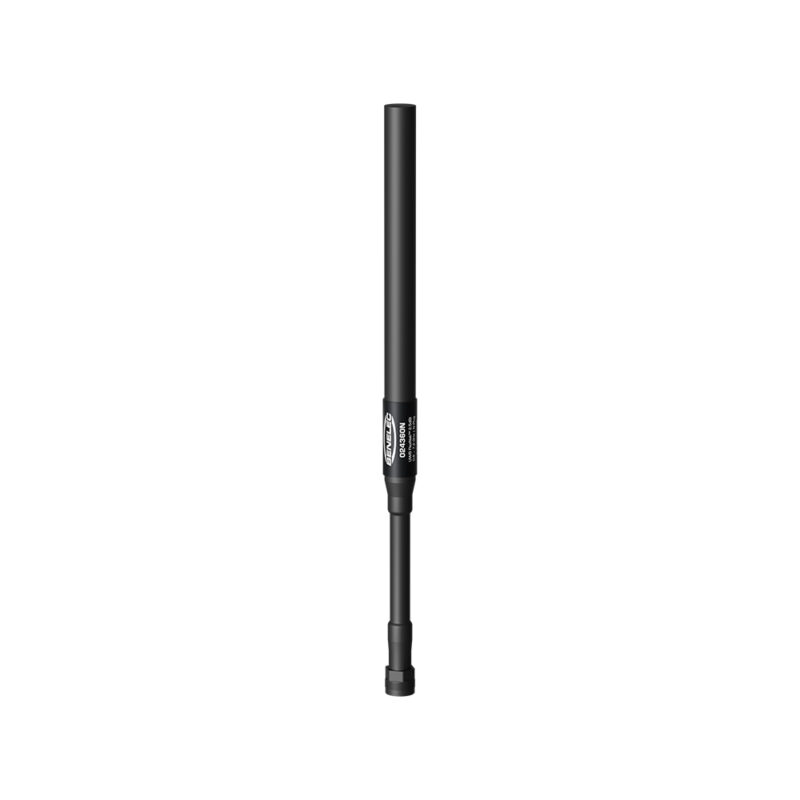

Benelec Tactical UWB 2.5dBi FlexNek™ Antenna 0.6-7.2GHz, N Plug
AUD Includes GST
The 024360N Tactical UWB FlexNek™ Antenna is a compact, wideband solution engineered for operation across 0.6–7.2 GHz. Designed for use in demanding tactical environments, it delivers stable omni-directional coverage with vertical polarisation, ensuring reliable performance in MANET, EW, video surveillance, and other mission-critical applications. With low VSWR across its entire band, the antenna offers efficient power transfer and consistent connectivity.
Constructed with a slim matte black fiberglass radome and FlexNek™ technology, the 024360N provides excellent durability and impact resistance while maintaining a discreet profile. Its lightweight design and fixed N-type plug connector make installation simple in both fixed and mobile deployments. Rugged, robust, and factory-tuned, this antenna requires no further adjustment and is built for dependable long-term use.
No Datasheet Found. Please submit a request below.
[shipping_message]
We’re currently enabling online payment and shipping.
Shipping available:
- Description
- Specifications
Description
Benelec Tactical UWB 2.5dBi FlexNek™ Antenna
0.6-7.2 GHz | N Plug
FEATURES
- Matte black fiberglass radome
- Fixed N type plug connector
- FlexNek™ and connector matte black
- Slim and compact design
- Robust
- Durable
- Factory tuned; no further tuning required
- Designed and manufactured in Australia
APPLICATION
Military MANET and link applications.
WARRANTY
3-Year Warranty
(Refer to Benelec Terms and Conditions)
| Frequency | 0.6-7.2 GHz |
| Gain | See realised gain response next page |
| VSWR | < 2.2:1 |
| Impedance | 50 Ω |
| Horizontal Beamwidth (AZ) | 360° ± 2 dB Az deviation at main beam max |
| Vertical Beamwidth (EL) | 70° – 100° |
| Polarisation | Vertical |
| Radiation | Omni-directional |
| Termination | N plug (fixed) |
| Power | 15 W (RMS) |
| Length | 390 mm |
| Diameter | 20.5 mm (max) |
| Net Weight | 130 g |
