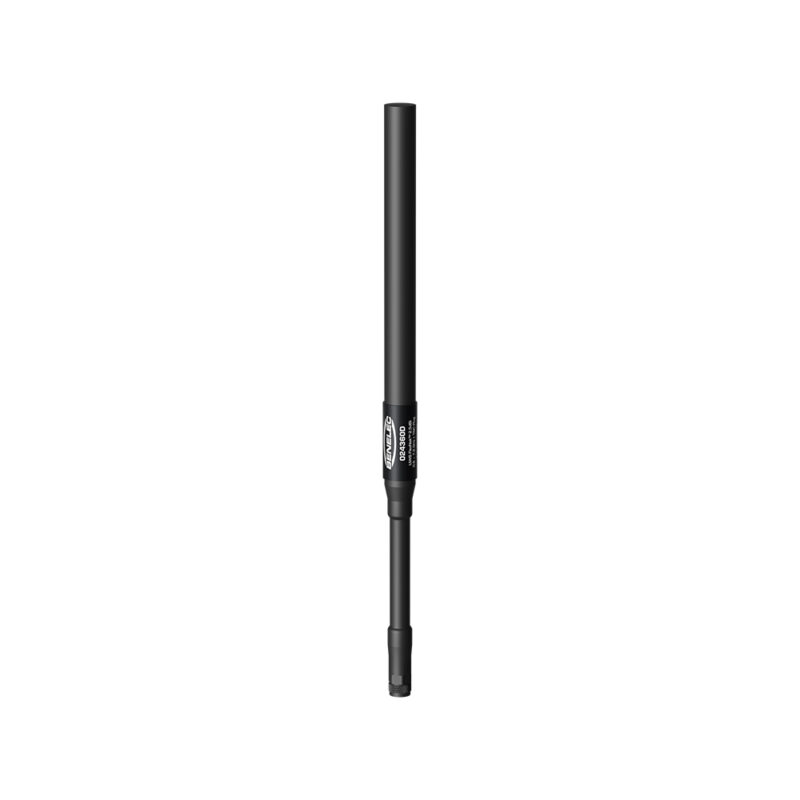

Benelec Tactical UWB 2.5dBi FlexNek™ Antenna 0.6-7.2GHz, TNC Plug
AUD Includes GST
The 024360D Tactical UWB FlexNek™ Antenna is a compact, high-performance wideband solution covering 0.6–7.2 GHz. Engineered for use in demanding tactical environments, it delivers stable omni-directional coverage with vertical polarisation, ensuring reliable connectivity in MANET, EW, video surveillance, and other mission-critical applications. Its low VSWR across the full band ensures efficient performance and minimal signal loss.
Built with a matte black fiberglass radome and FlexNek™ technology, the 024360D provides excellent impact resistance and long-term durability, while maintaining a discreet, slim profile. The fixed TNC plug connector offers secure, reliable attachment to compatible equipment, making installation quick and efficient. Rugged, lightweight, factory tuned and optimised for both mobile and fixed deployments.
No Datasheet Found. Please submit a request below.
[shipping_message]
We’re currently enabling online payment and shipping.
Shipping available:
- Description
- Specifications
Description
Benelec Tactical UWB 2.5dBi FlexNek™ Antenna
0.6-7.2 GHz | TNC Plug
FEATURES
- Matte black fiberglass radome
- Fixed TNC type plug connector
- FlexNek™ and connector matte black
- Slim and compact design
- Robust and durable
- Designed and manufactured in Australia
APPLICATION
Military MANET and link applications
WARRANTY
3-Year Warranty
(Refer to Benelec Terms and Conditions)
| Frequency | 0.6-7.2 GHz |
| Gain | See realised gain response next page |
| VSWR | < 2.5:1
(600 MHz – 7.2 GHz) |
| Impedance | 50 Ω |
| Horizontal Beamwidth (AZ) | 360° ± 2 dB Az deviation at main beam max |
| Vertical Beamwidth (EL) | 70° – 100° |
| Polarisation | Vertical |
| Radiation | Omni-directional |
| Termination | TNC plug (fixed) |
| Power | 15 W (RMS) |
| Length | 390 mm |
| Diameter | 20.5 mm |
| Net Weight | 115 g |
